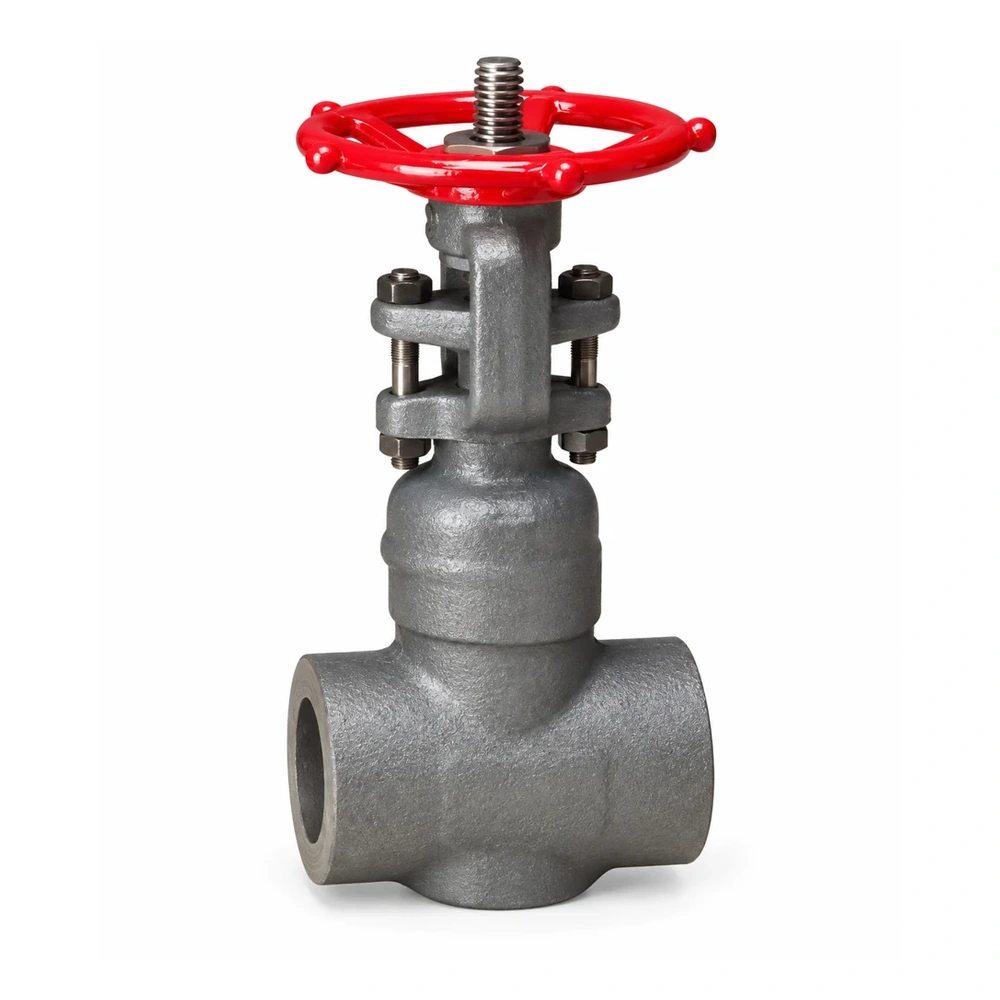

Forged gate, bolted bonnet, standard port
Class 800 forged gate valve with a bolted bonnet and standard flow port. The ASTM A105N body and bonnet house a Z20C13 wedge with Z12CF13 stainless-steel seat and stem. A stainless
Specifications & order
Welcome to cogvalve
Welcome to the integrated cognitive intelligence platform for industrial valves.
ProductsWelcome to cogvalve, a cognitive intelligence ecosystem where artificial intelligence, cognitive science and computational neuroscience meet to develop intelligent, analytical and decision-support systems.
About cogvalve ↗The full introduction and product pages are available in Persian and English.
Products
Images, specifications and an enquiry route for every product
No products match this search.
Forged gate, bolted bonnet, full port
Full-port forged gate valve with a bolted bonnet, ASTM A105N body and bonnet, and Z20C13 wedge. Its full flow port distinguishes this configuration from the standard-port version.
Specifications & order

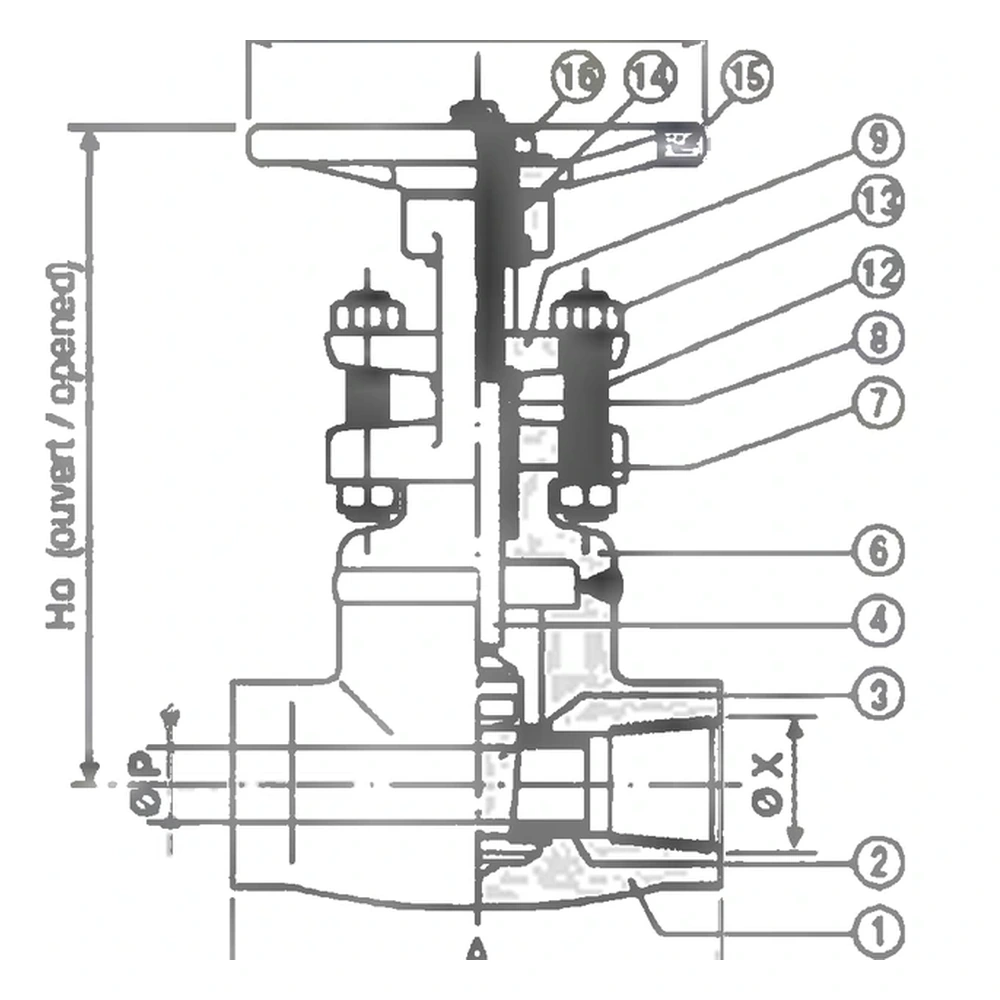

Forged gate, welded bonnet, standard port
Class 800 forged gate valve with a welded body-to-bonnet joint and standard flow port. ASTM A105N is used for the body and bonnet, with a Z20C13 wedge. Z12CF13 seat and stem compon
Specifications & order
Forged gate, welded bonnet, full port
This gate valve combines an ASTM A105N forged body and bonnet with a welded bonnet joint and full flow port. The Z20C13 wedge closes against a Z12CF13 seat, and the stem is also Z1

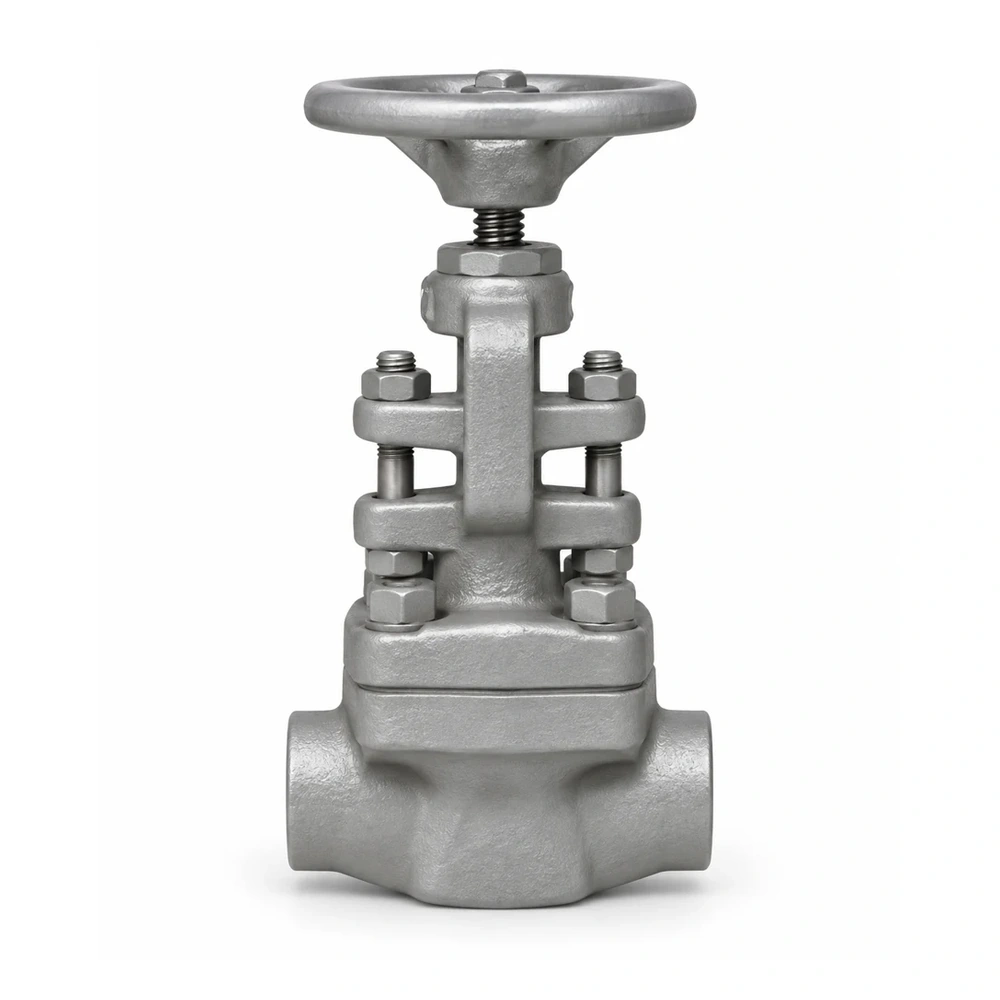

Specifications & orderGlobe valve, renewable seat, standard port
Forged globe valve with a renewable seat, standard flow port and bolted bonnet. Its principal components are an ASTM A105N body and bonnet, Z20C13 disc and Z12CF13 stem. The remova
Specifications & order
Globe valve, renewable seat, full port
Full-port globe valve with a renewable seat and bolted bonnet. The construction uses an ASTM A105N forged body and bonnet, Z20C13 disc, and Z12CF13 seat and stem. A renewable seat
Specifications & order

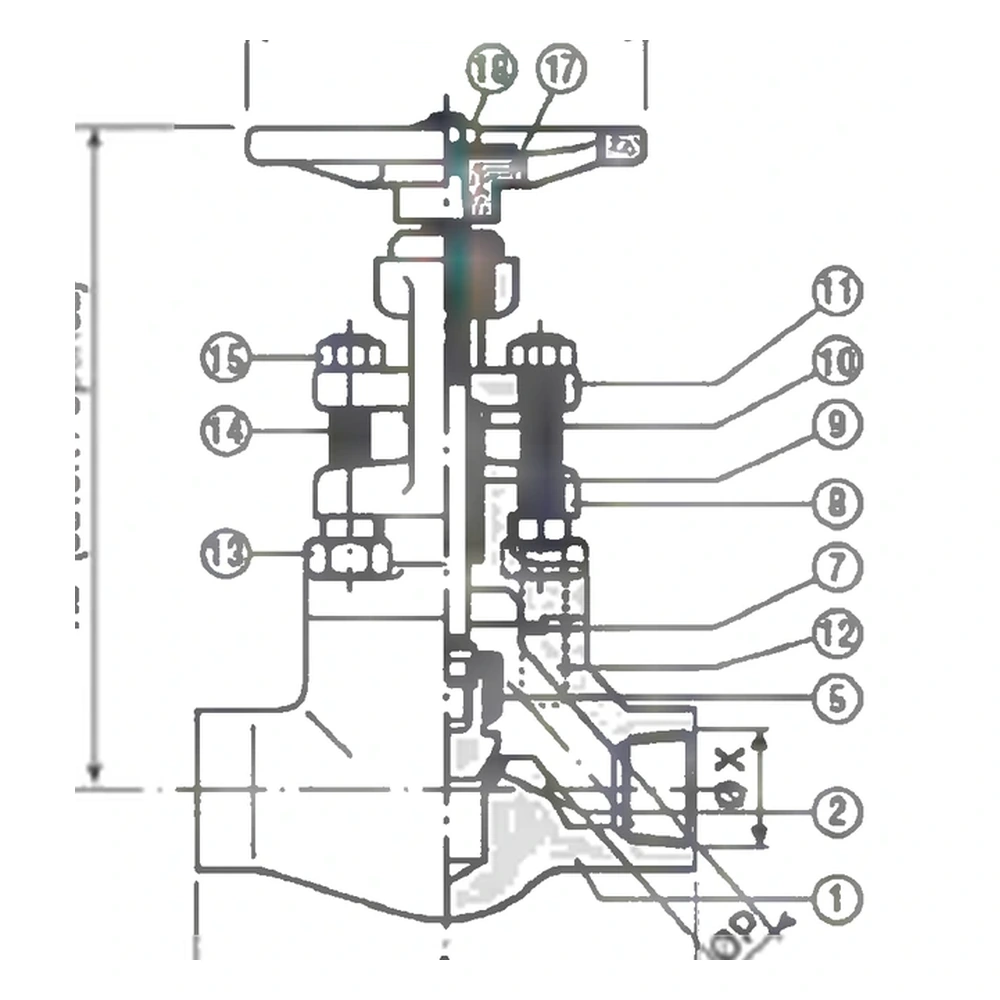

Globe valve, hard-faced seat, bolted bonnet
Forged globe valve with an integral Stellite-hard-faced seat, bolted bonnet and standard flow port. The body and bonnet are ASTM A105N, the disc is Z20C13 and the stem is Z12CF13.
Specifications & order

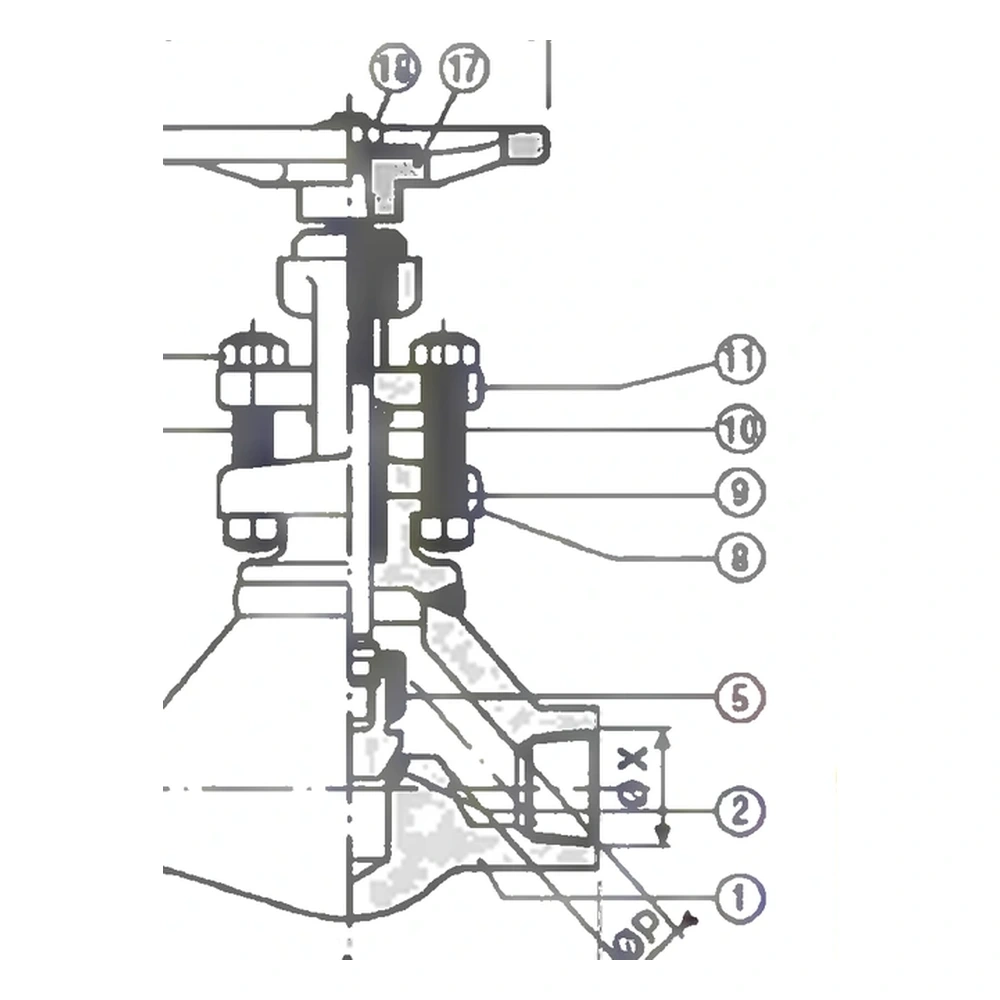

Globe valve, hard-faced seat, welded bonnet
Forged globe valve with a welded bonnet, integral Stellite-hard-faced seat and full flow port. This arrangement combines an ASTM A105N body and bonnet with a Z20C13 disc, Z12CF13 s

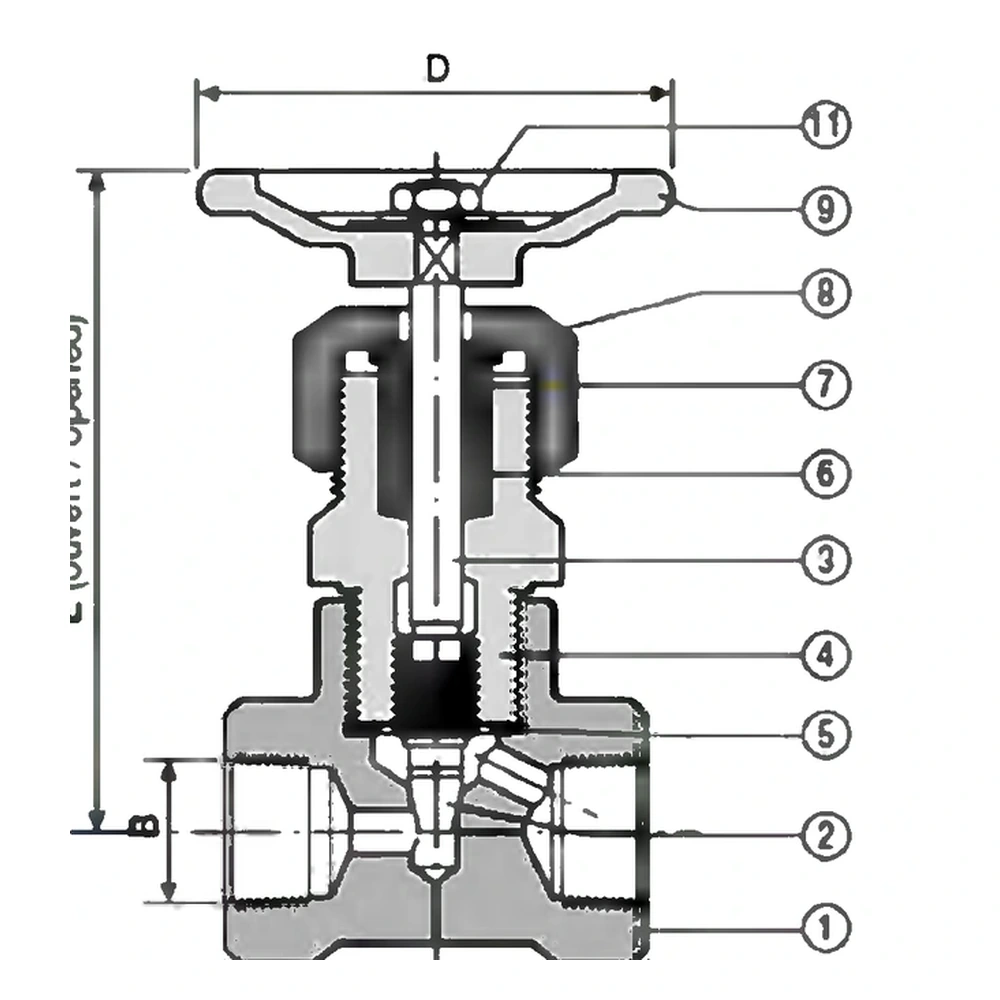

Specifications & orderInstrumentation globe valve
Straight-pattern instrumentation valve with a screwed bonnet and Z20C13 needle closure. The body and bonnet are ASTM A105N forged steel, with a Z12CF13 stainless-steel stem. Both t
Specifications & orderHorizontal check valve, standard port
Horizontal check valve with a standard flow port and piston or ball closure. The ASTM A105N body and bolted cover contain a Z12CF13 seat and Z20C13 piston or ball. A stainless-stee
Specifications & order
Horizontal check valve, full port
Full-port horizontal check valve with piston or ball internal arrangements. The body and cover are ASTM A105N forged steel, the seat is Z12CF13 and the closure member is Z20C13. Th
Specifications & order

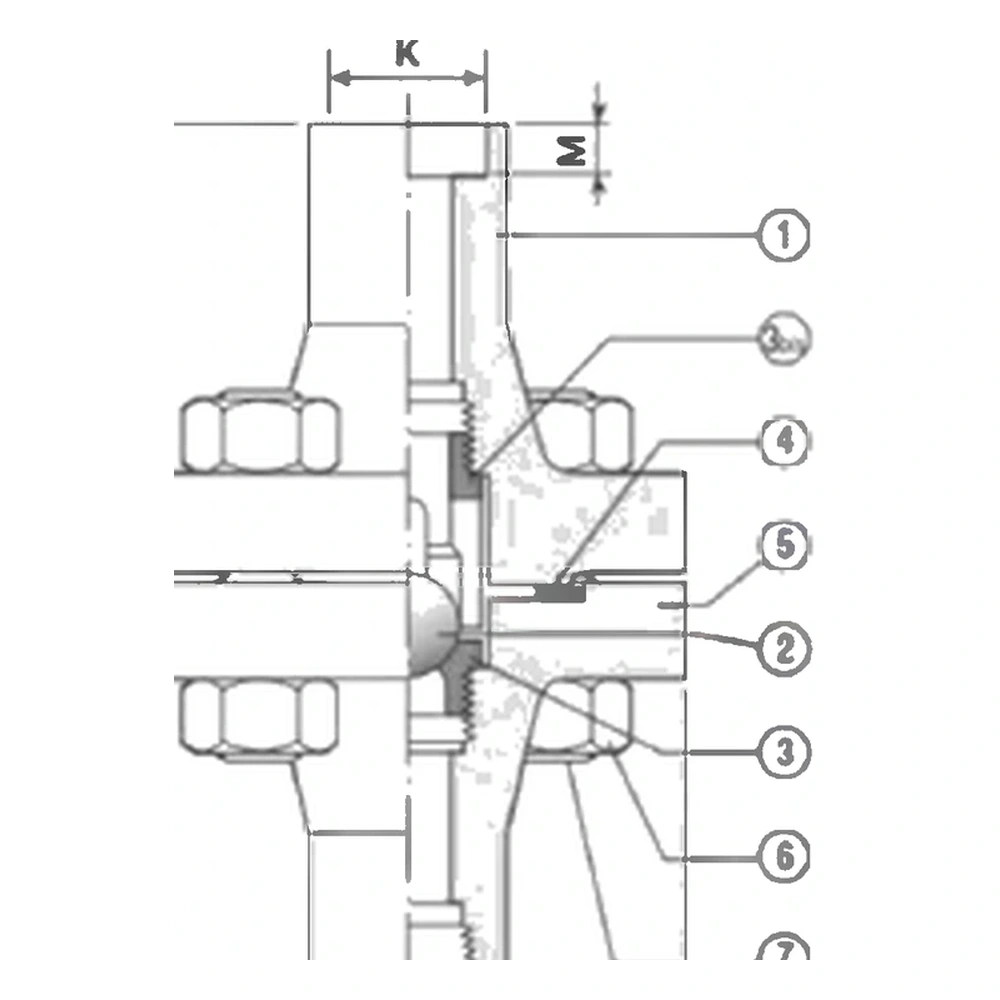

Vertical ball check valve
Vertical ball-type check valve with a standard port and bolted bonnet. The body and bonnet components are ASTM A105N forged steel, while the ball and seat are Z13C13 stainless stee
Specifications & order
Forged steel flanged gate valve
Forged-steel gate valve with flanged ends and manual handwheel operation. Its wedge and rising stem open or close the straight passage between the two flanges, with a bolted body-t
Specifications & order

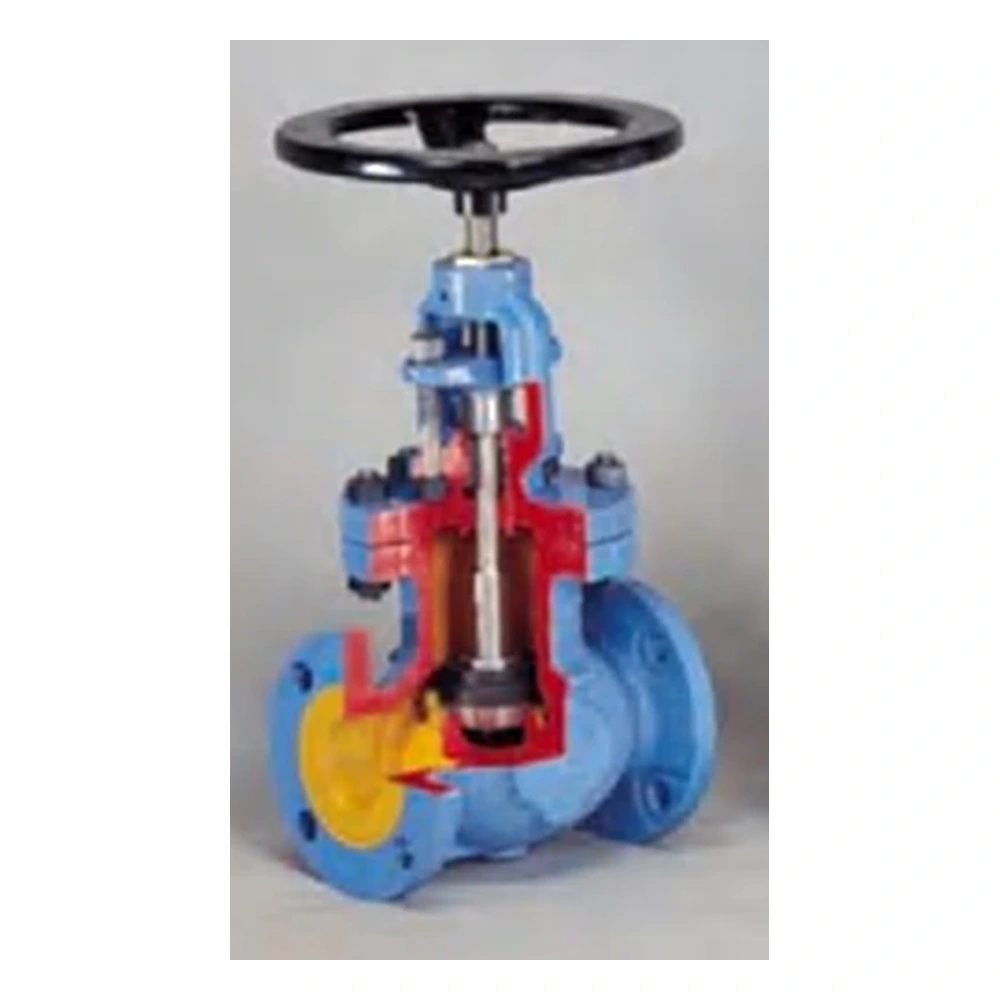

Forged steel flanged globe valve
Forged-steel globe valve with flanged ends, an axially moving disc and manual handwheel. Stem movement brings the disc towards the internal seat, with a diverted flow path through
Specifications & order

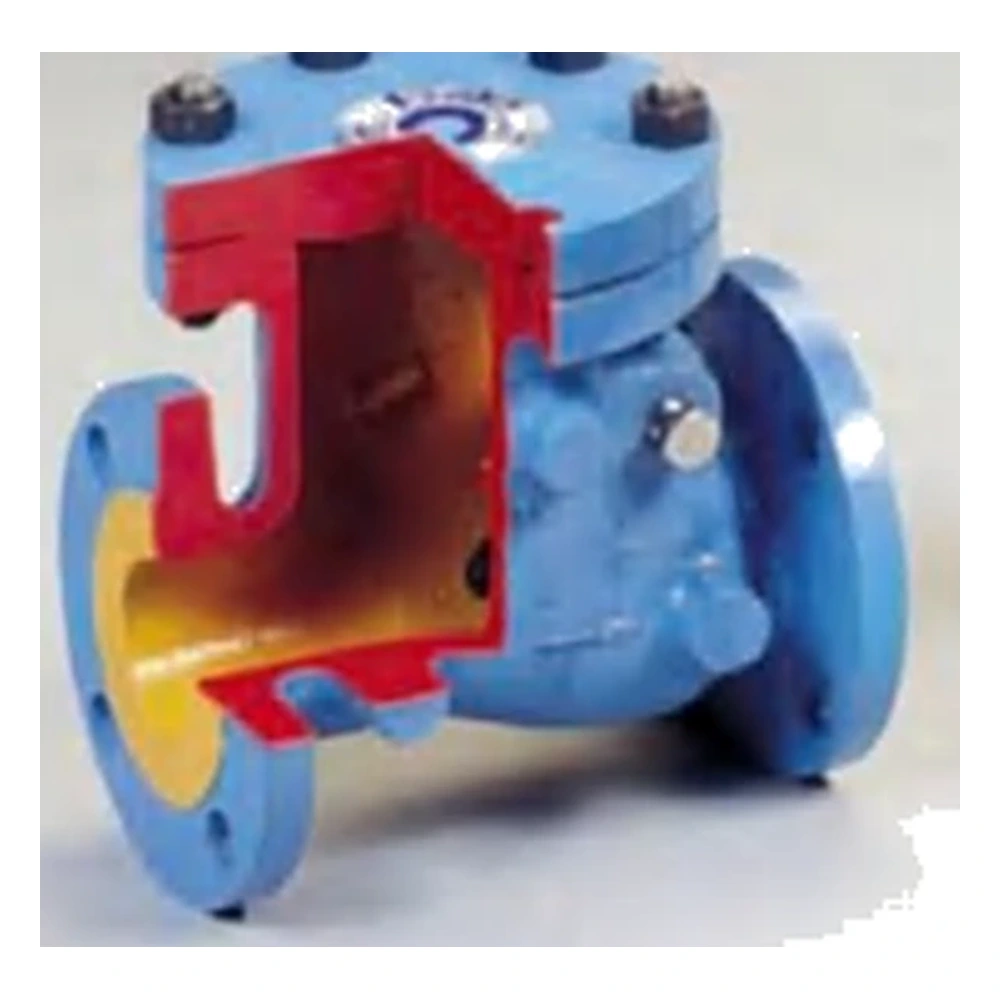

Forged steel flanged check valve
Forged-steel flanged check valve with a bolted cover. A guided internal closure opens with forward flow and returns to the seat for reverse-flow shut-off. The valve operates automa
Specifications & order
Cast steel gate valve
Cast-steel gate valve with a solid wedge, RF flanged ends and handwheel operation. Body and bonnet configurations cover carbon steel, low-temperature steel and chromium-molybdenum
Specifications & order

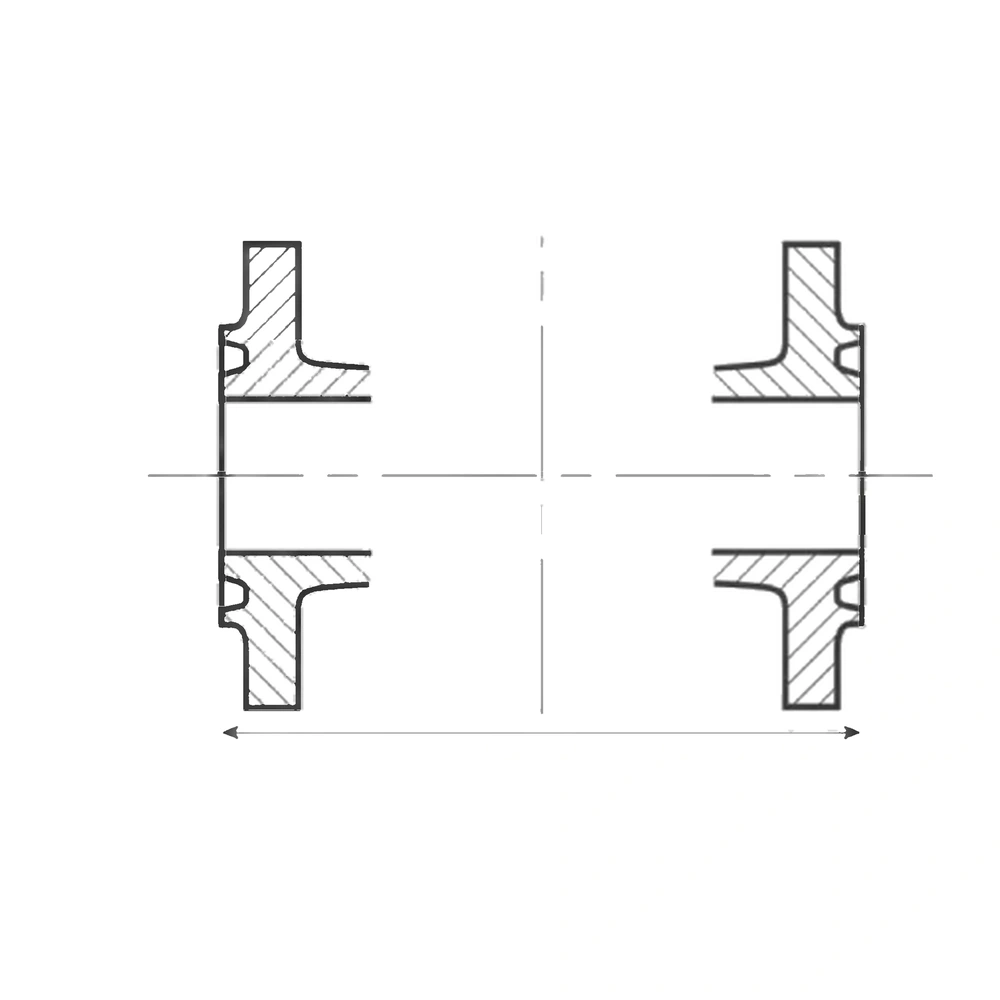

Gate valve with ring-joint flanges
Gate valve with ring-joint flanges at both ends, providing an annular sealing interface within the flange grooves. The wedge opens or closes the straight flow passage, with operati
Specifications & order

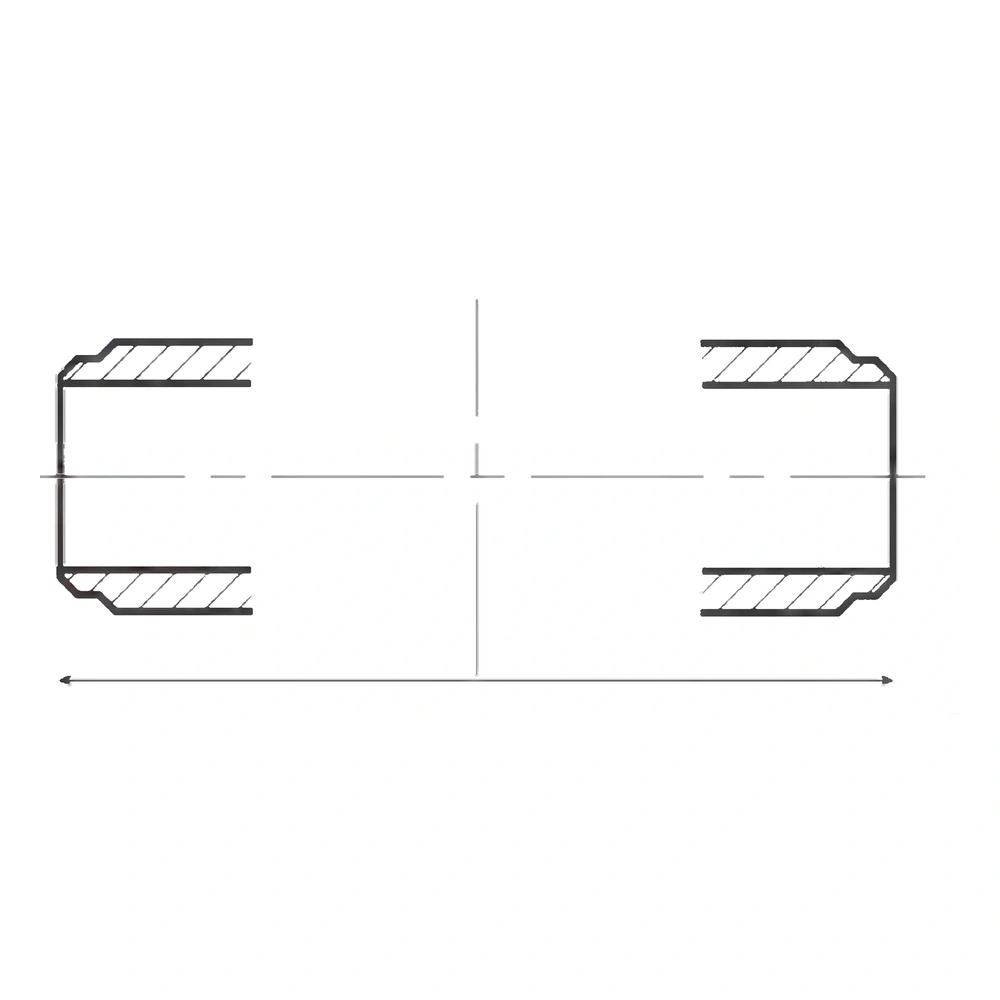

Gate valve with butt-welding ends
Gate valve with bevelled ends for butt-welding to the pipeline. This configuration combines a wedge-type closure with a direct welded connection at each end of the body. The stem a
Specifications & order
Cast steel globe valve
Cast-steel globe valve with an axially moving disc, bonnet and handwheel operation. Body and bonnet options include WCB carbon steel, LCB and LC3 low-temperature steels, and WC6 an
Specifications & order

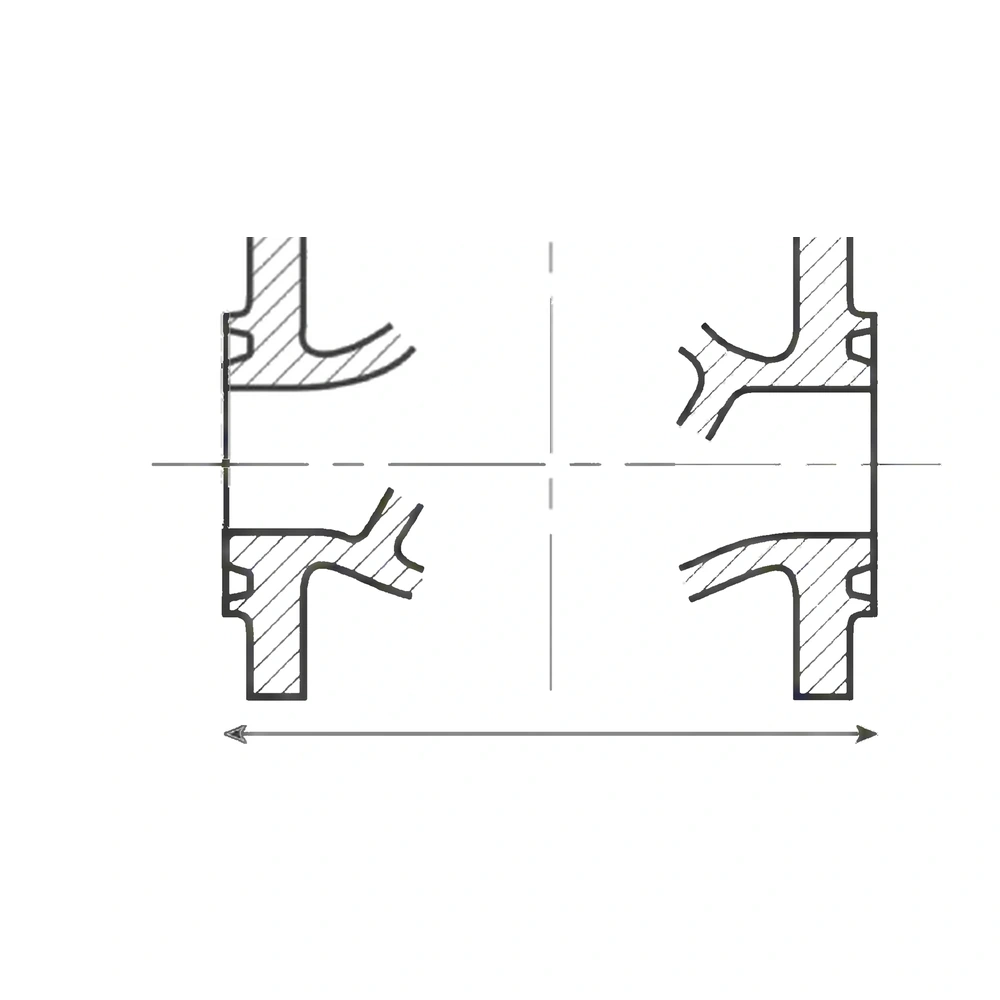

Globe valve with ring-joint flanges
Globe valve with ring-joint flanges and an axially moving disc. A ring seated in the flange grooves seals the pipeline interface, while the stem and handwheel move the disc towards
Specifications & order

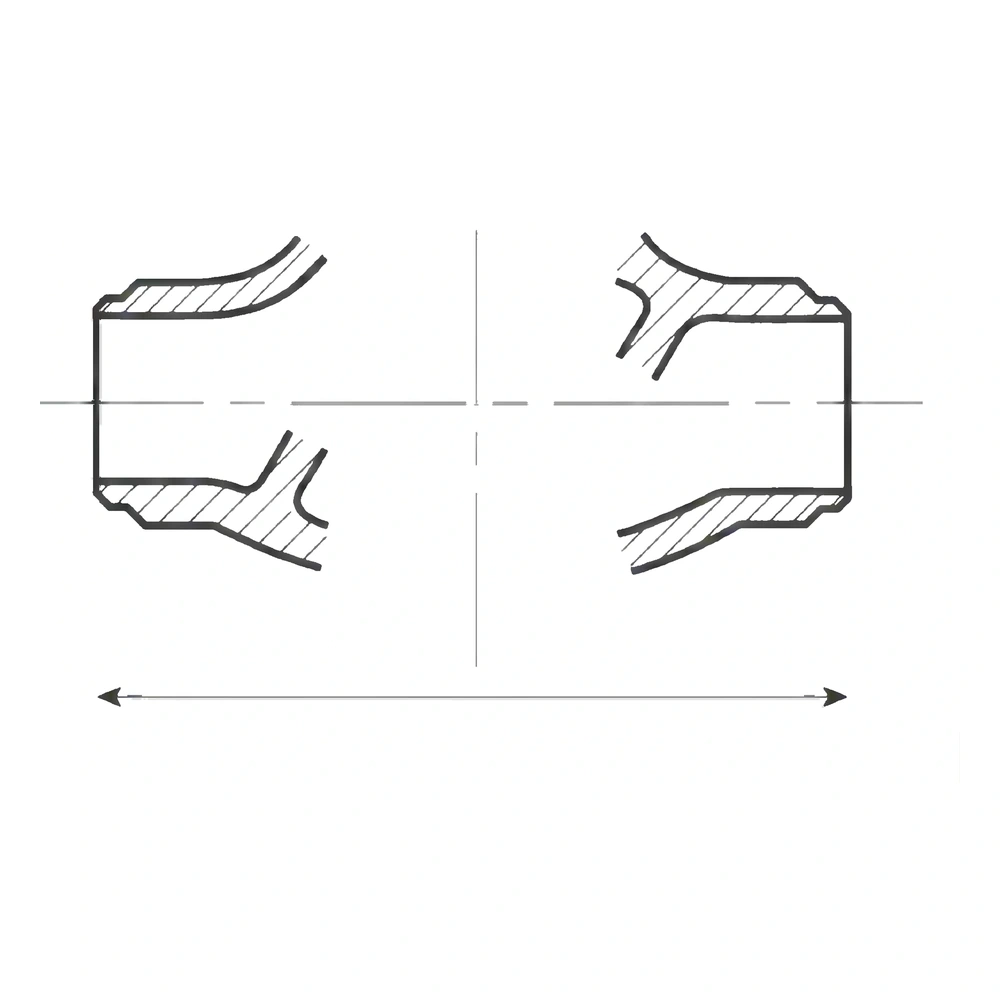

Globe valve with butt-welding ends
Globe valve with two bevelled ends for butt-weld connection. Axial movement of the disc within the globe-pattern body opens or closes the passage, with operation transmitted throug
Specifications & order
Swing check valve
Swing check valve with a hinged disc, hinge arm and pin, removable cover and RF flanged ends. Forward flow opens the disc; the disc returns to its seat to close the reverse-flow pa
Specifications & order

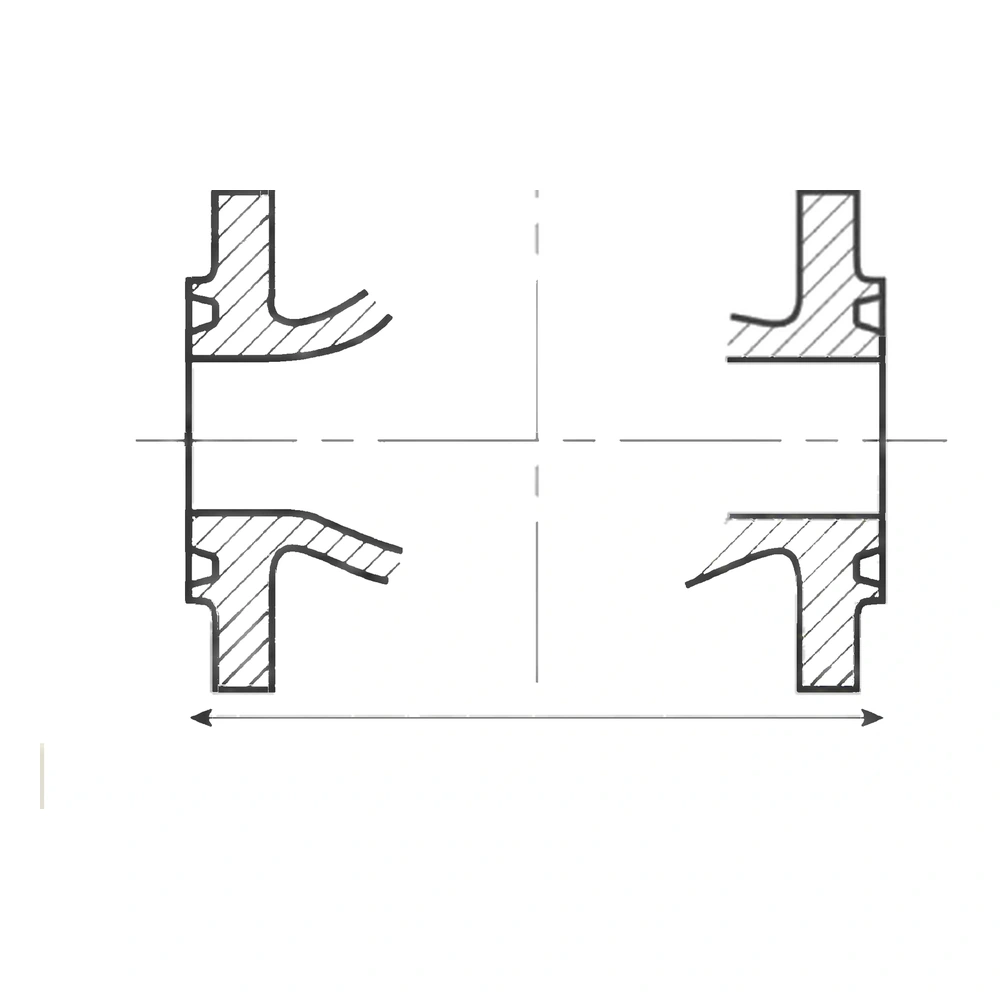

Check valve with ring-joint flanges
Check valve with ring-joint flanges at both ends, for a pipeline interface using a flange sealing ring. The valve operates automatically with the flow, returning its internal closu
Specifications & order

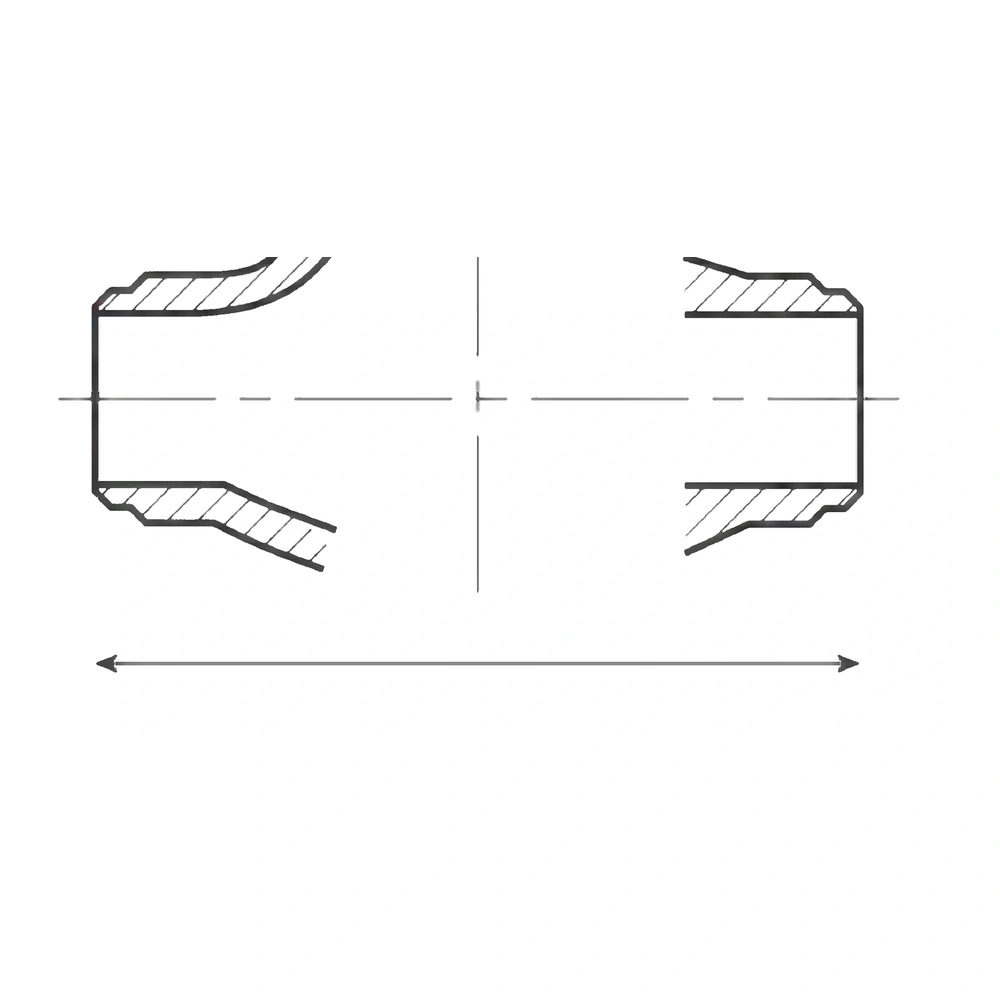

Check valve with butt-welding ends
Check valve with butt-weld connections and two bevelled ends. Its automatic closure permits forward flow and closes the reverse-flow path. Direct welded connections integrate the b
Specifications & orderValve actuation and accessories
Valve actuation and accessories include manual gear operators, electric operators, chainwheels and mechanical operation transmission to a floor stand. End-of-travel limit switches
Specifications & orderStandard piston valve
Standard piston valve with a cast-steel body, forged-steel bonnet and stainless-steel piston. The piston travels between reinforced-graphite sealing rings: the lower ring provides
Specifications & order
Pressure-balanced piston valve
Pressure-balanced piston valve for the larger-size arrangement within the piston-valve family. Its internals include a piston, guide stem, flow-guidance cone, and graphite and rein
Specifications & order
Double-sealing piston valve
Double-sealing piston valve for saturated steam and steam/condensate mixtures. It forms two in-line sealing contacts: contact between the ring and piston, and a metal cone-to-cone

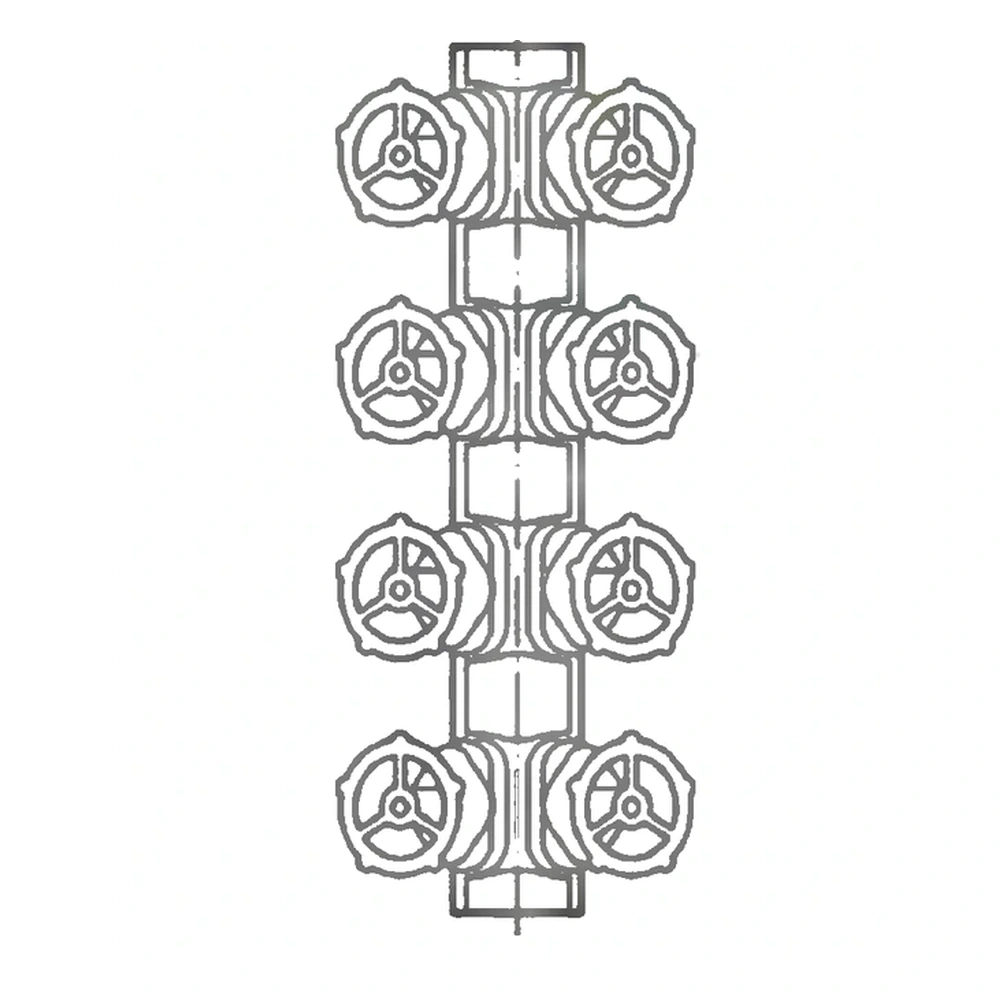

Specifications & orderSteam distribution manifold
Steam distribution manifold built by welding forged-steel modules with four or six tracer branches. TCMs piston valves with reinforced-graphite sealing rings isolate the individual
Specifications & order

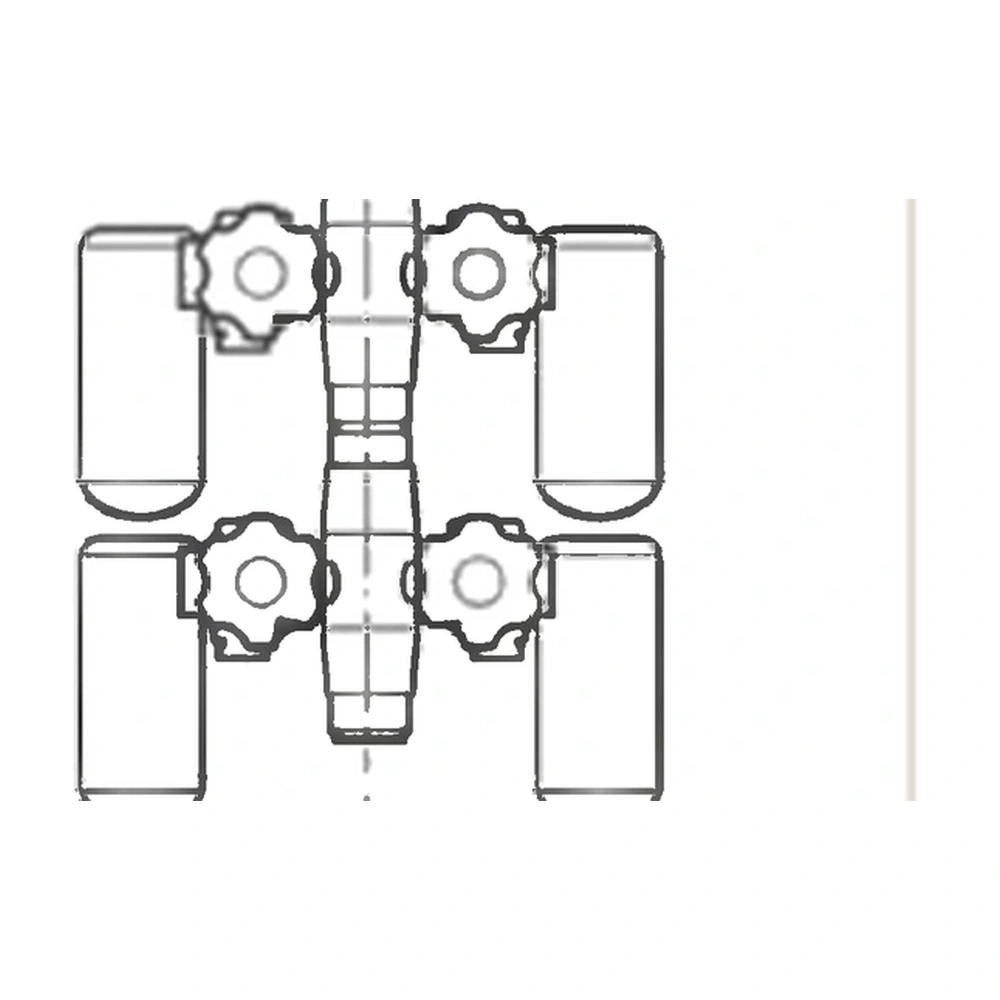

Condensate collection manifold
Condensate collection manifold with a cast-steel body assembled from welded two-tracer modules. Double-piston TCMs valves and reinforced-graphite seals are combined with a removabl
Specifications & order

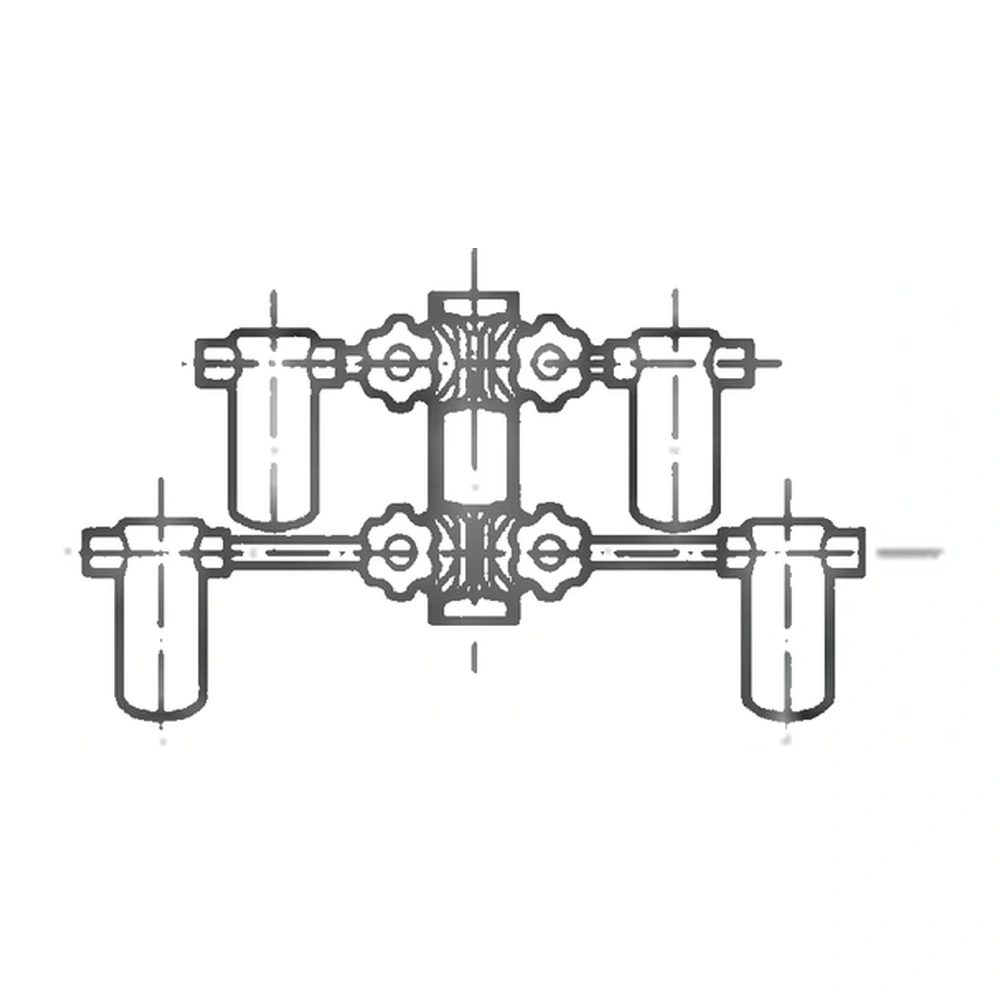

Modular condensate collection manifold
Modular condensate collection manifold with a forged-steel body made from welded four- or six-tracer modules. TCMs piston valves and reinforced-graphite rings serve the branches. S
Specifications & order
Condensate manifold and trap assembly
Condensate collection assembly built from welded two-tracer forged-steel modules and fitted with TVS3100 or TVS3000 trap stations. A two-branch module can also be arranged with one
Specifications & order

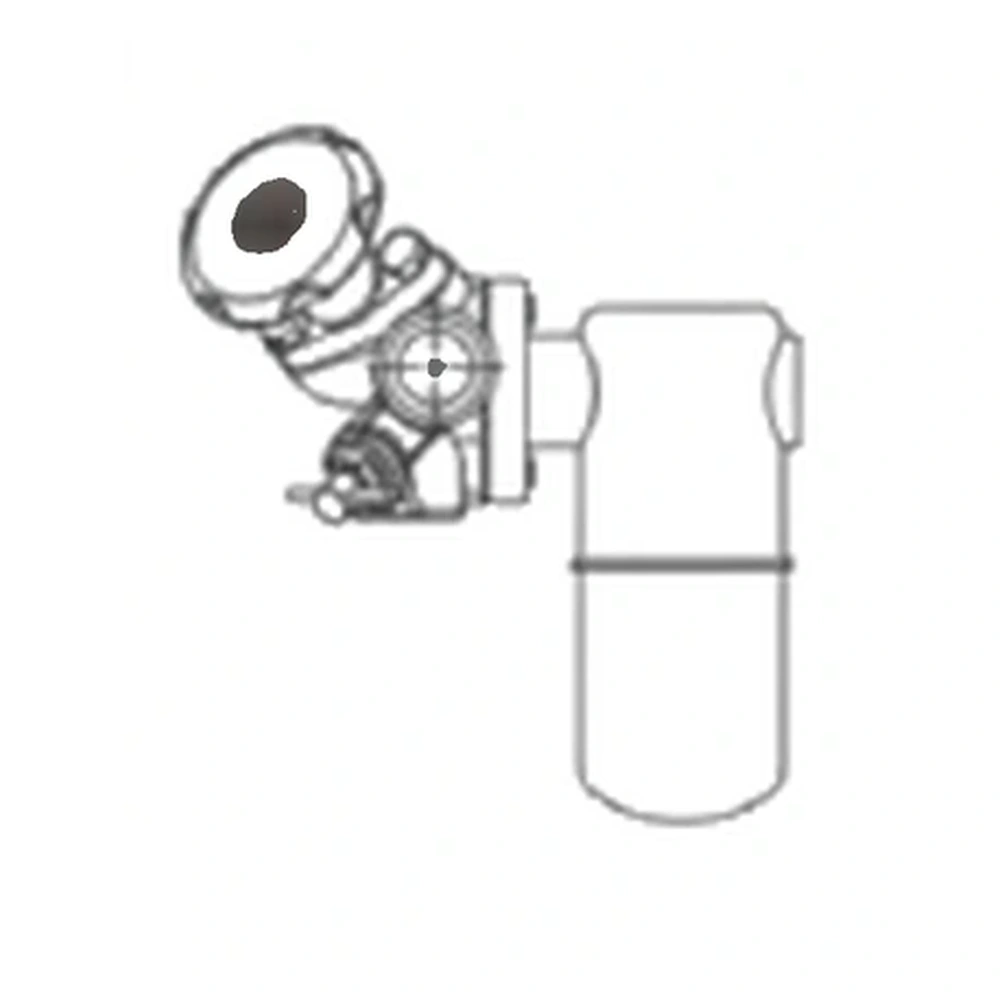

Trap station with two isolation valves
Compact trap station with a carbon-steel body, one Series 2000 stainless-steel inverted-bucket trap and two TCMs piston valves for upstream and downstream isolation. A universal co
Specifications & order

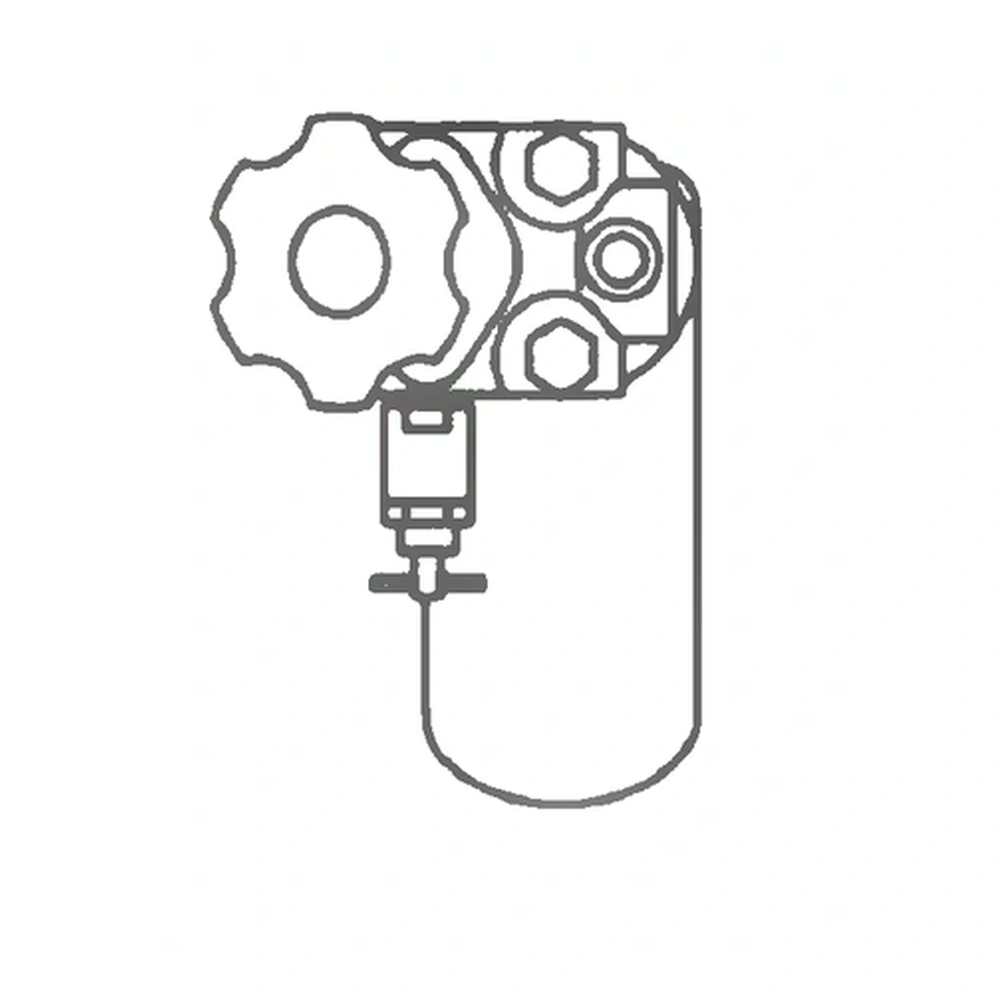

Trap station with one isolation valve
Compact trap station with a forged-steel body, one Series 2000 stainless-steel inverted-bucket trap and one TCMs piston valve for upstream isolation. This arrangement has one princ

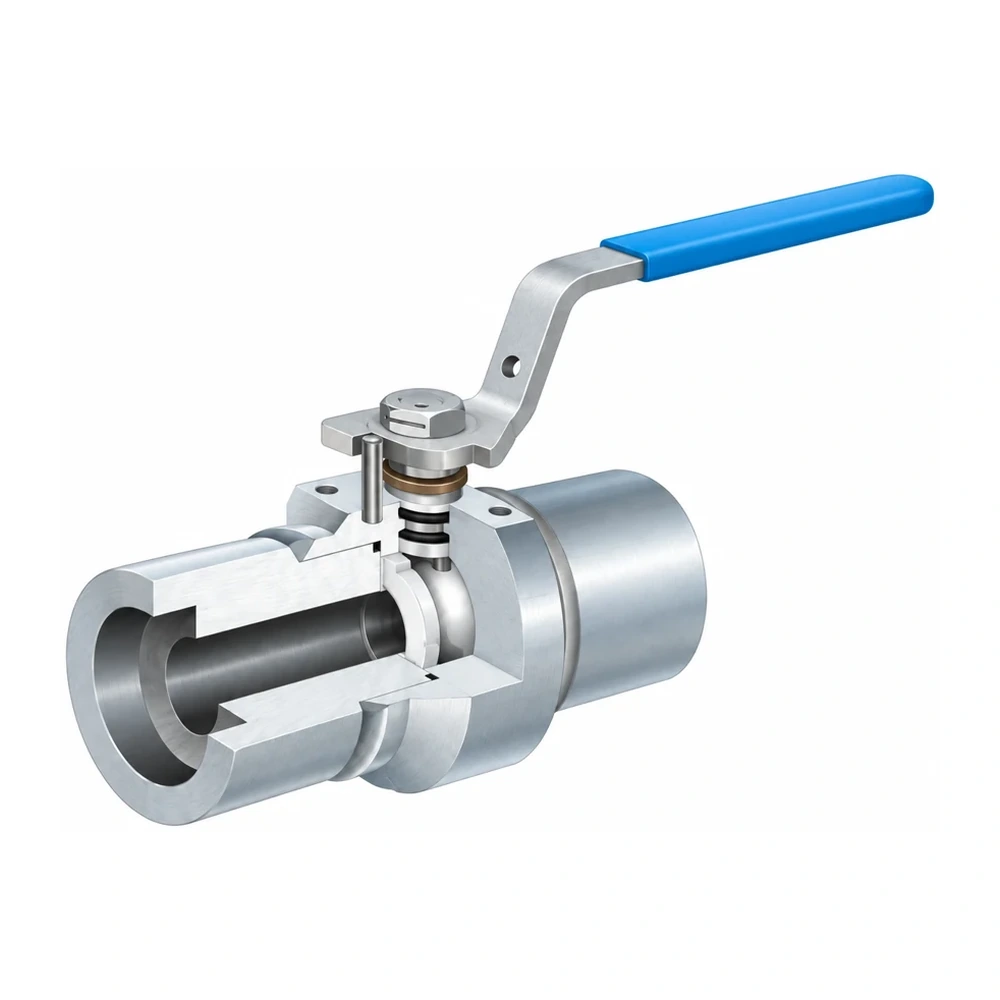

Specifications & orderOne-piece welded ball valve
This floating-ball valve uses a welded body assembly that forms a non-dismantlable unit. The floating ball provides bidirectional shut-off, with full-bore and reduced-bore configur
Specifications & order

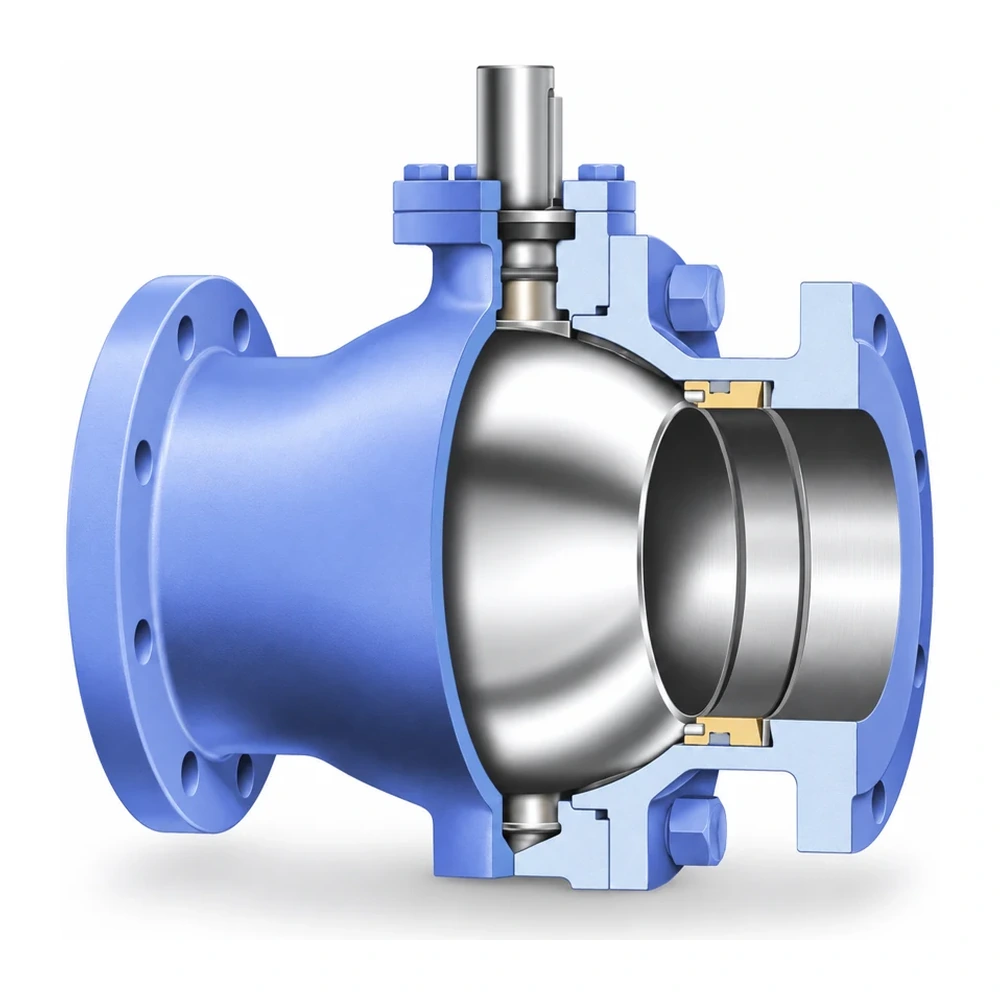

Two-piece trunnion-mounted ball valve
The two-piece trunnion-mounted ball valve has a body and end connector with a single body joint. A lower trunnion and stem support the ball under full rated differential pressure.
Specifications & order

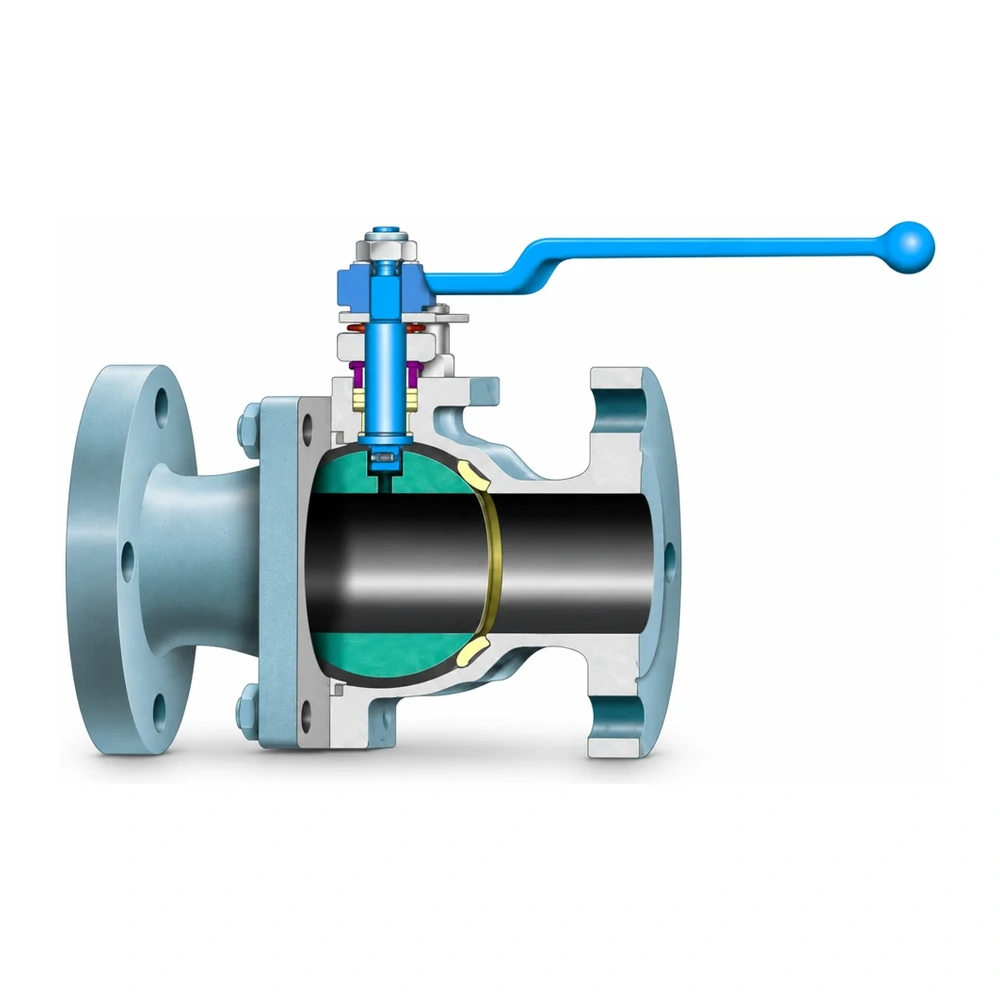

Two-piece floating ball valve
This configuration is a floating-ball valve with a two-piece bolted body. Full-bore and reduced-bore versions are described with flanged ends. Its floating-ball construction is dis
Specifications & order

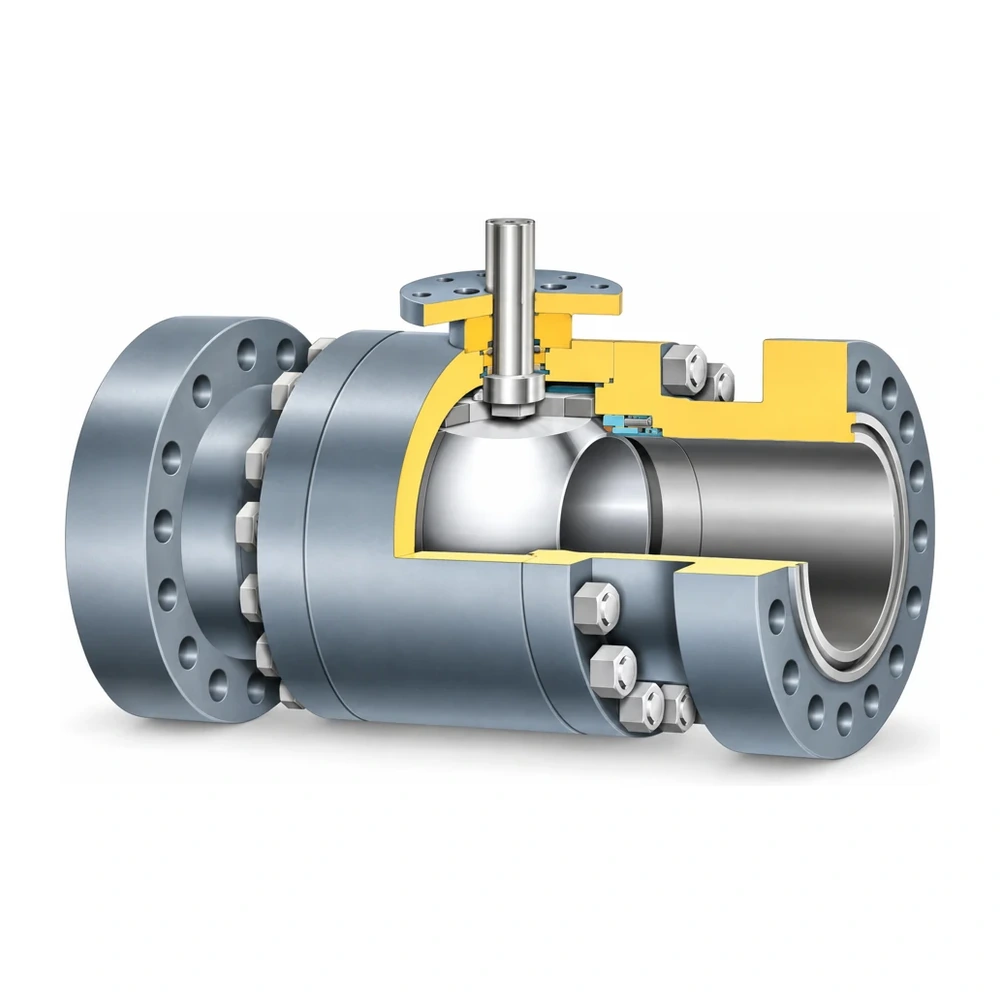

Three-piece trunnion-mounted ball valve
This trunnion-mounted ball valve uses a three-piece bolted body across several pressure classes. Sizes from 2 to 4 inches are explicitly described as a two-piece exception, so body
Specifications & order

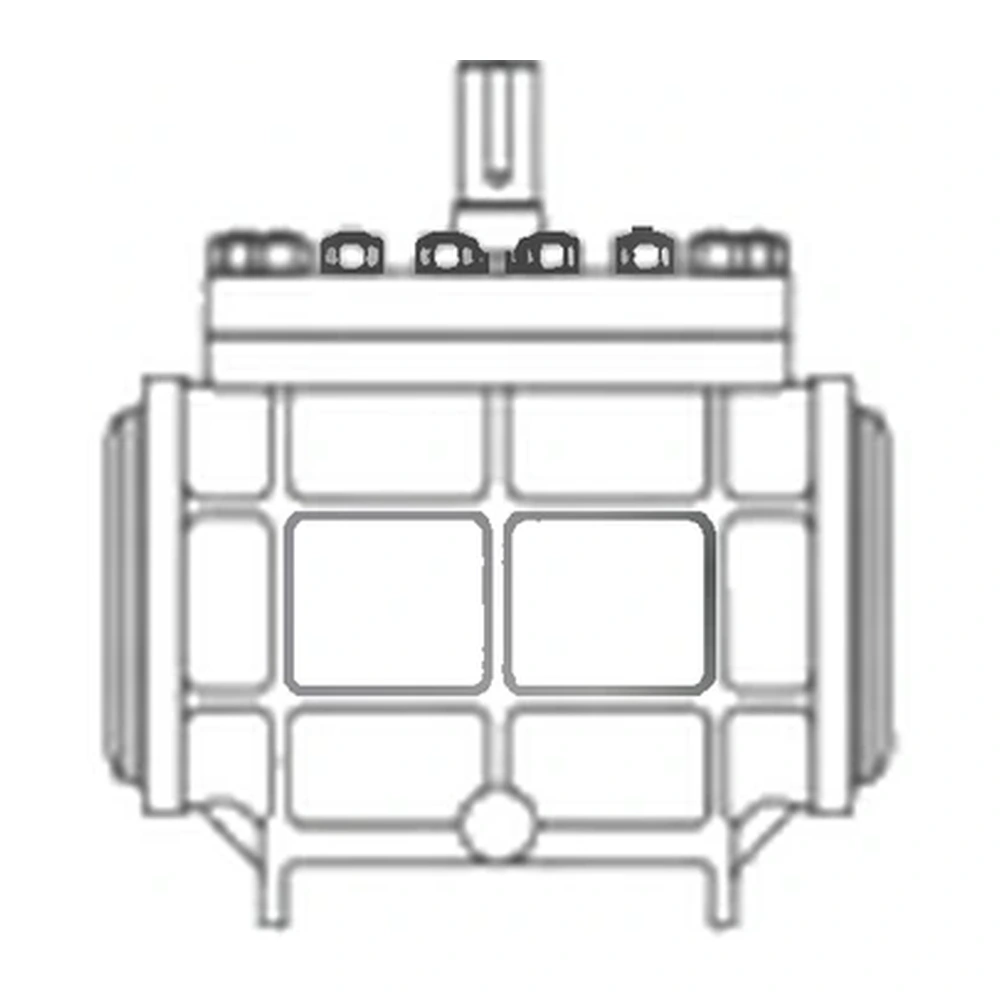

Top-entry ball valve
The top-entry ball valve has a one-piece body with access to the internals through the bonnet. This permits top access even when the valve is welded into a pipeline. A shouldered s

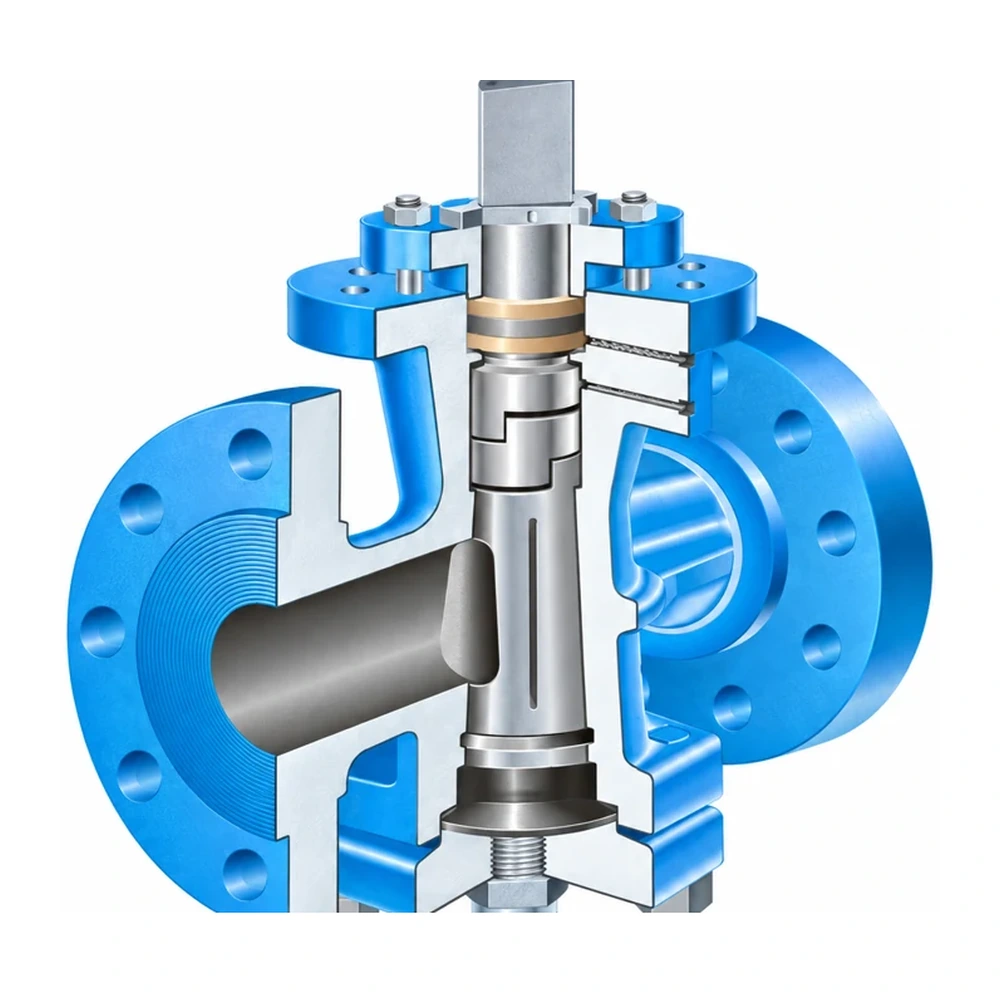

Specifications & orderLubricated inverted-plug valve
The lubricated plug valve uses a pressure-balanced inverted tapered plug. Two balancing passages connect the chambers at the ends of the plug to reduce the risk of binding in the b

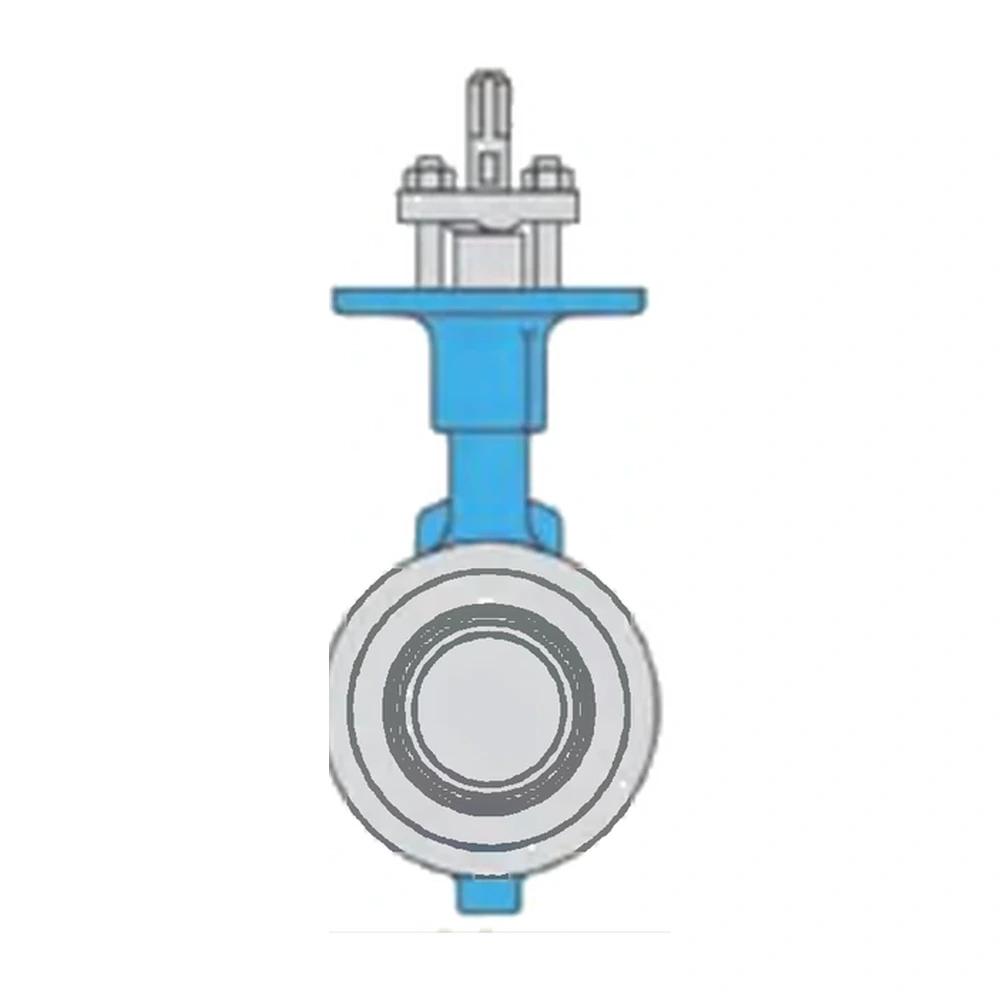

Specifications & orderDouble-offset butterfly valve
This double-offset butterfly valve combines a profiled disc, extended neck and compact body. The offset disc motion and controlled deformation of the PTFE seal provide bidirectiona

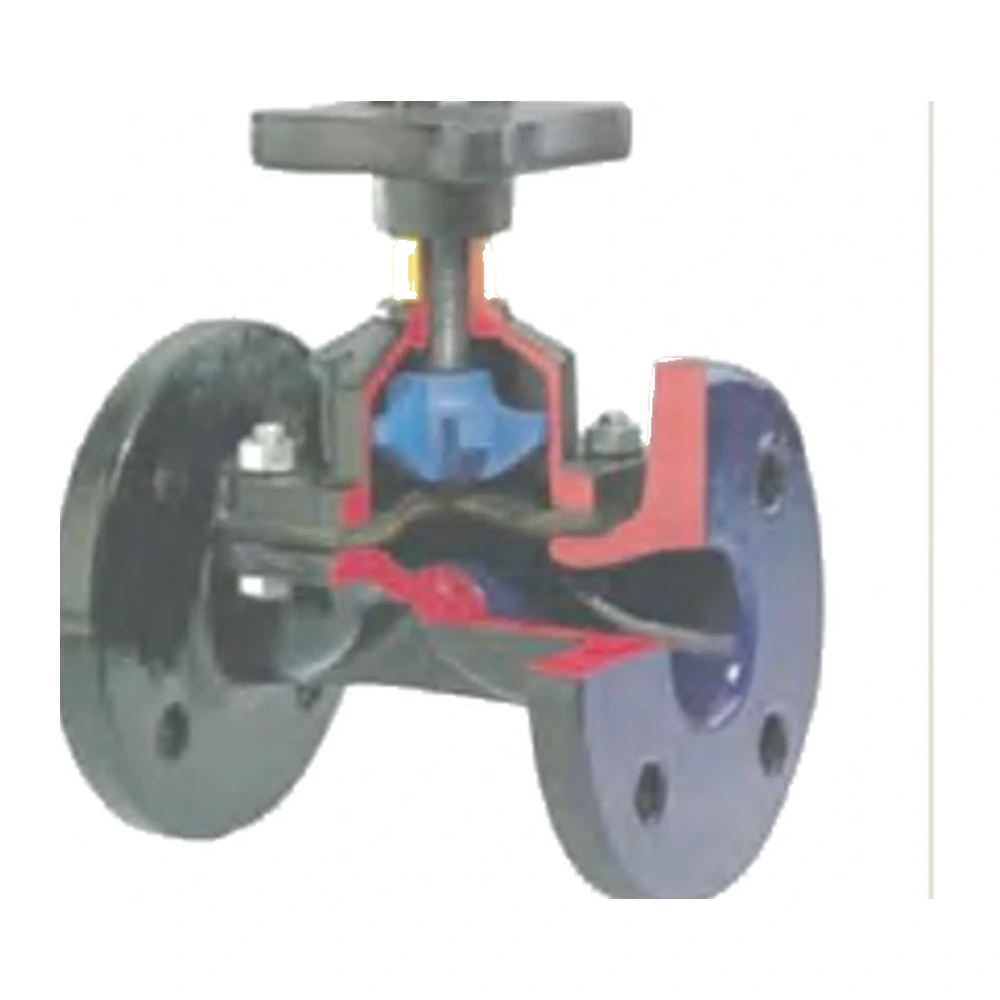

Specifications & orderMetal-body diaphragm valve, weir and straight-through types
The metal-body diaphragm valve is described in W weir and ST straight-through forms. The weir type is intended for fluids with low solids content; the straight-through type permits
Specifications & order

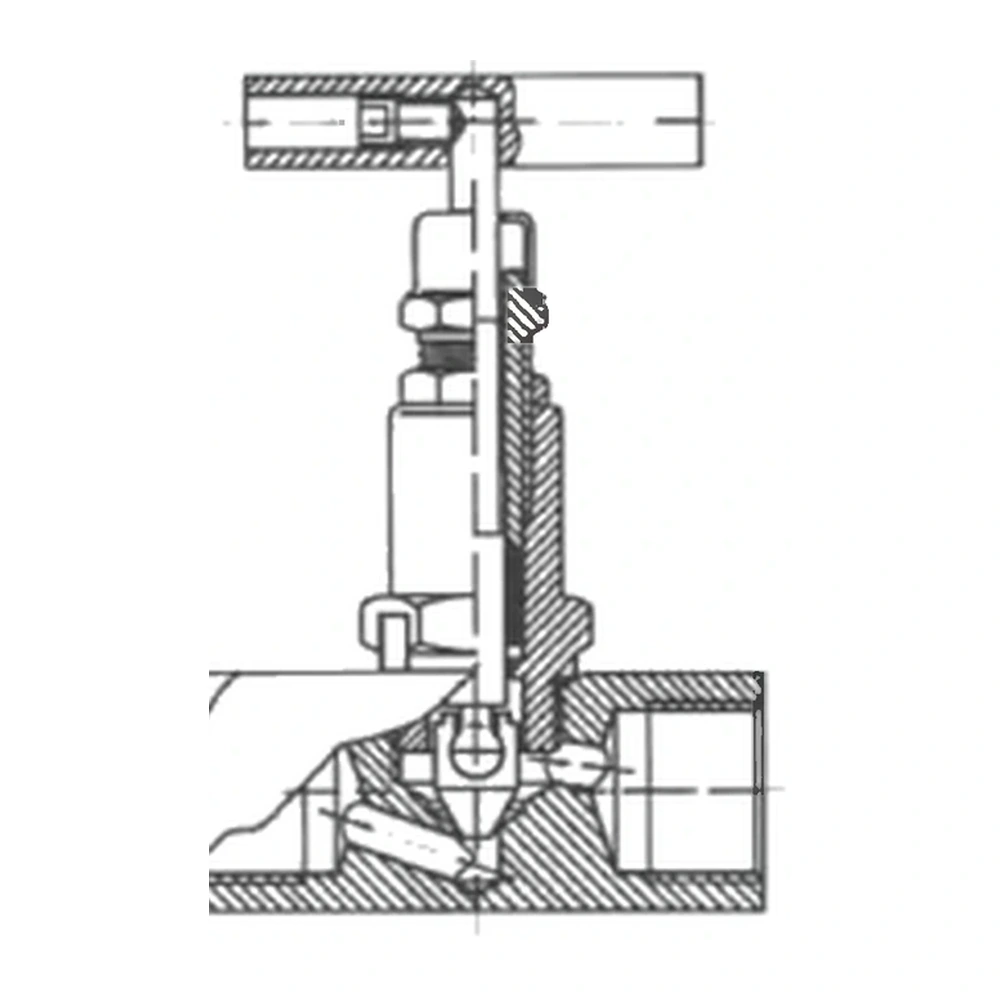

High-pressure needle valve
The high-pressure needle valve has a T-bar handle, a spindle with rolled threads and a non-rotating tip. PTFE packing and an adjustable gland provide stem sealing. The bonnet-to-bo
Specifications & order

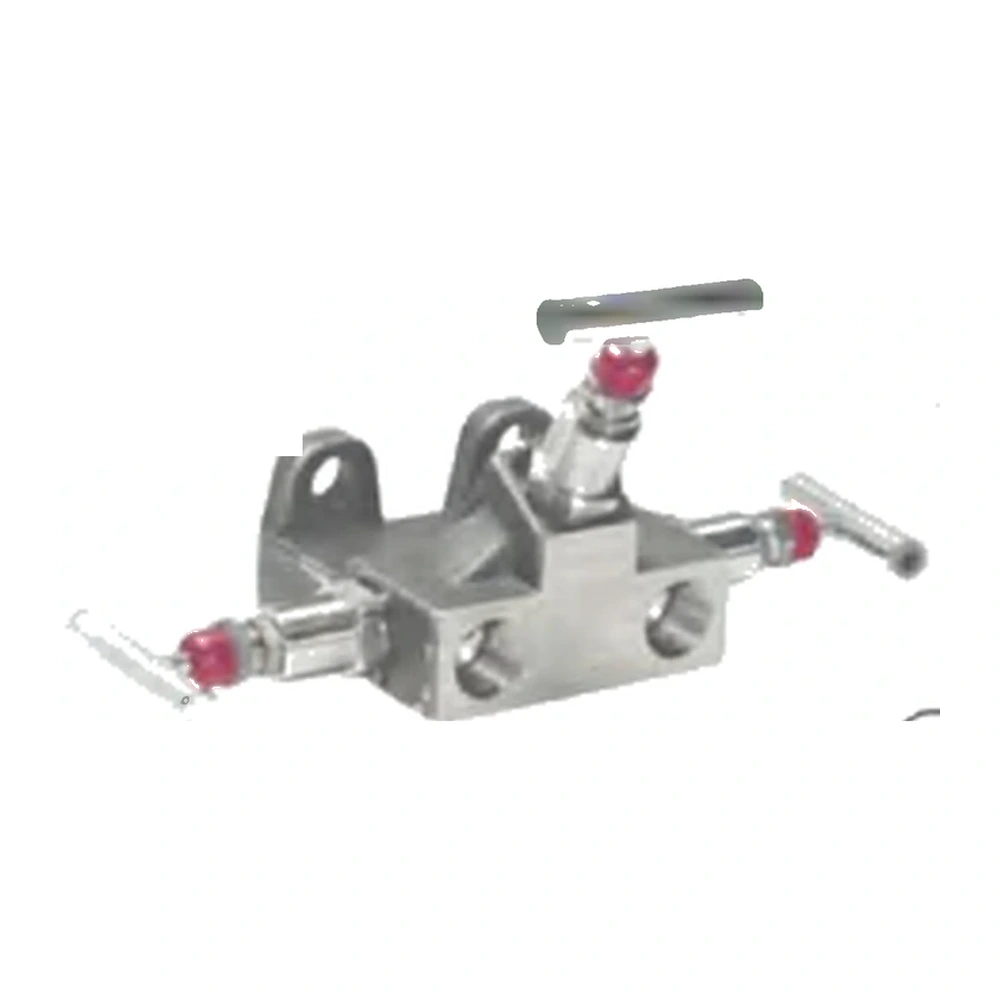

Three-way instrumentation manifold
The three-way instrumentation manifold combines needle-valve control passages in a common assembly. T33 is described for direct flange-to-pipe mounting, Y34 for direct mounting and
Specifications & order
Compact double block and bleed valve
The compact double-block-and-bleed assembly combines pipeline and instrumentation valves in one unit. It provides two isolation functions with a bleed passage between them, allowin
Specifications & order

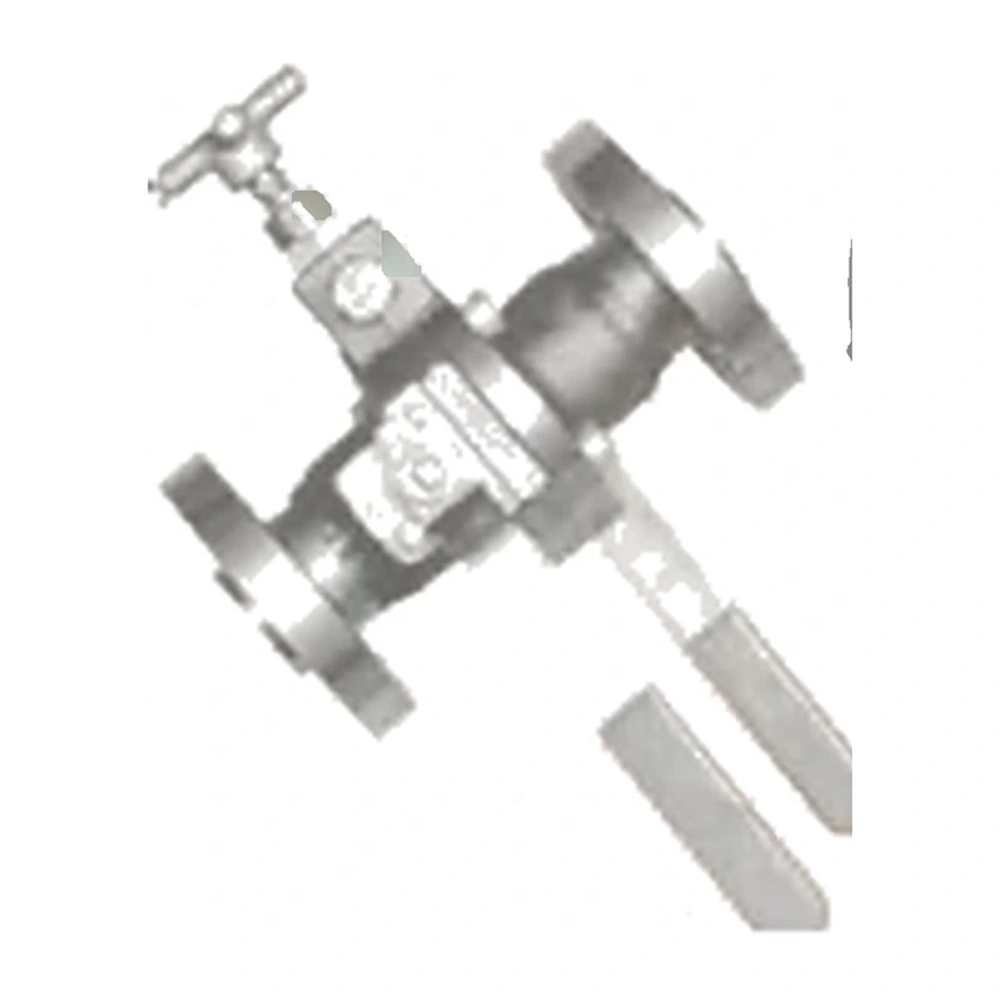

Compact double block injection valve
The double-block injection assembly combines an injection connection and two isolation functions in a compact unit. Integrating pipeline and instrumentation valves reduces separate
Specifications & order
Compact sampling valve
The compact sampling assembly brings the process connection and sample-path control into a modular unit. Its purpose is controlled sample withdrawal, which distinguishes it from a

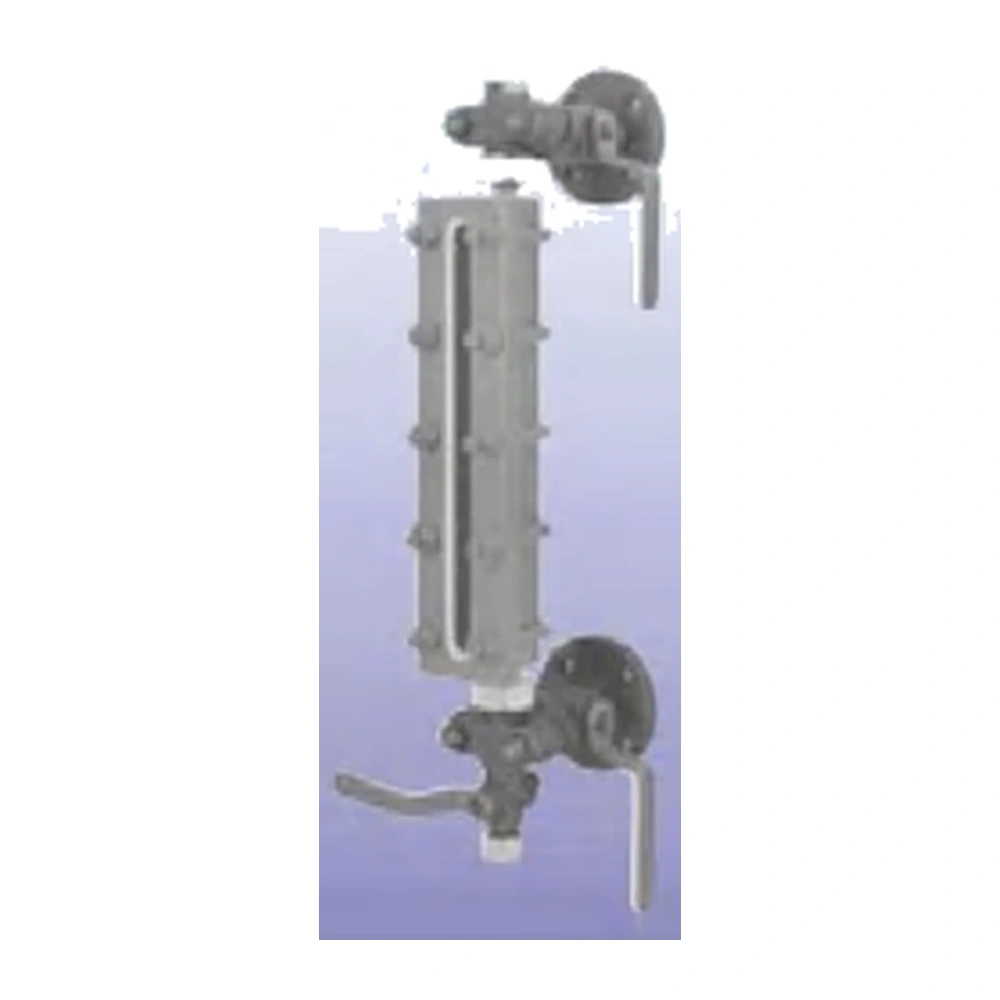

Specifications & orderLevel gauge for steam service
The steam-service level gauge provides direct level observation together with dedicated gauge valves. Reflex, transparent and bi-colour glass arrangements are described for steam d
Specifications & order

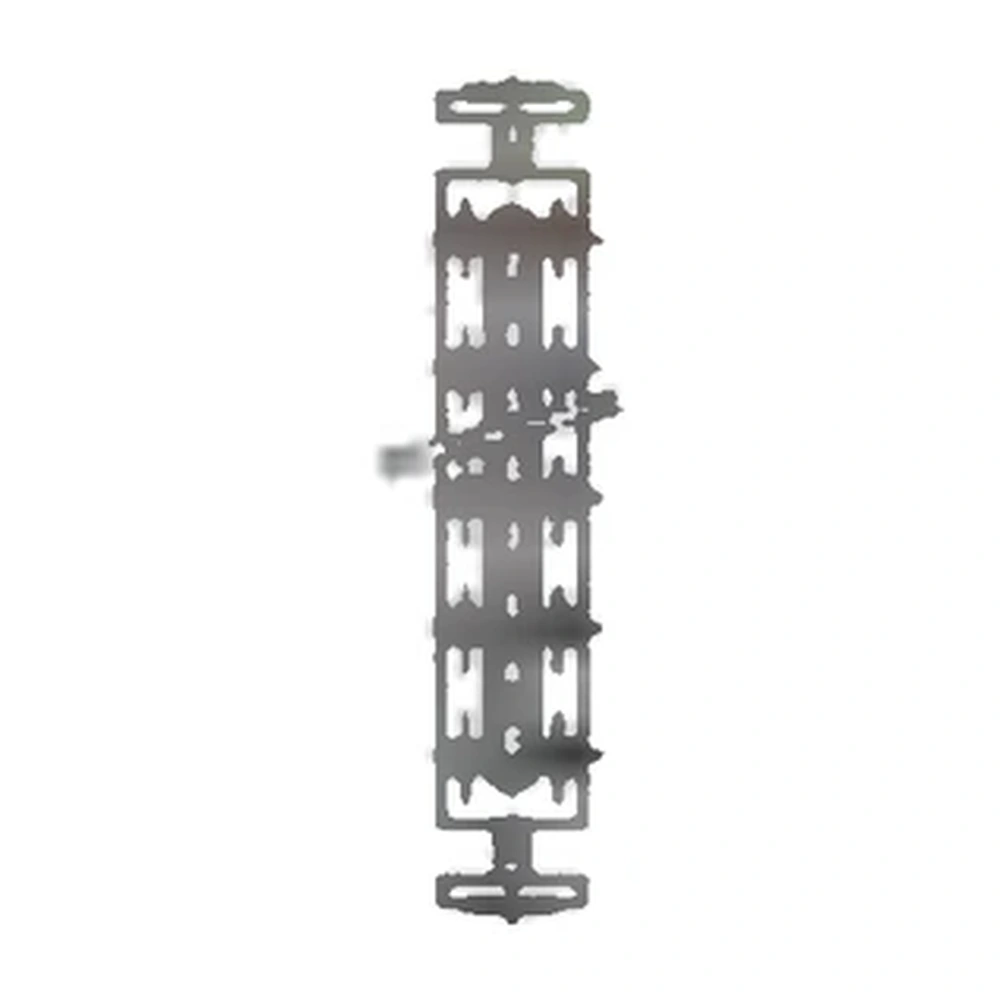

Level gauge for process service
The process-service level gauge is described in reflex and transparent versions. The transparent arrangement uses front and rear glasses with sealing and cushion gaskets to view th
Specifications & order

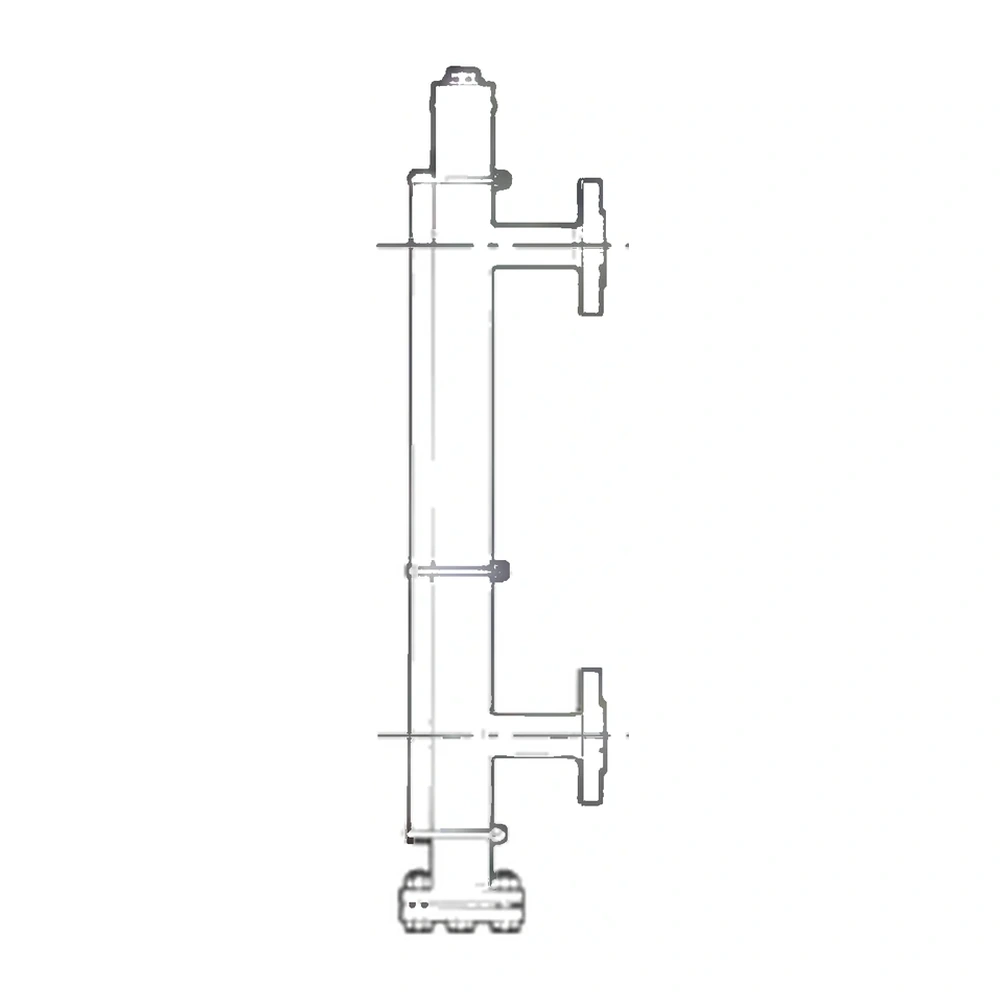

Magnetic level gauge
The magnetic level gauge consists of a tubular chamber, a float with an embedded magnet and an external scale. Float motion is transmitted to magnetic rollers or a following indica
Specifications & order

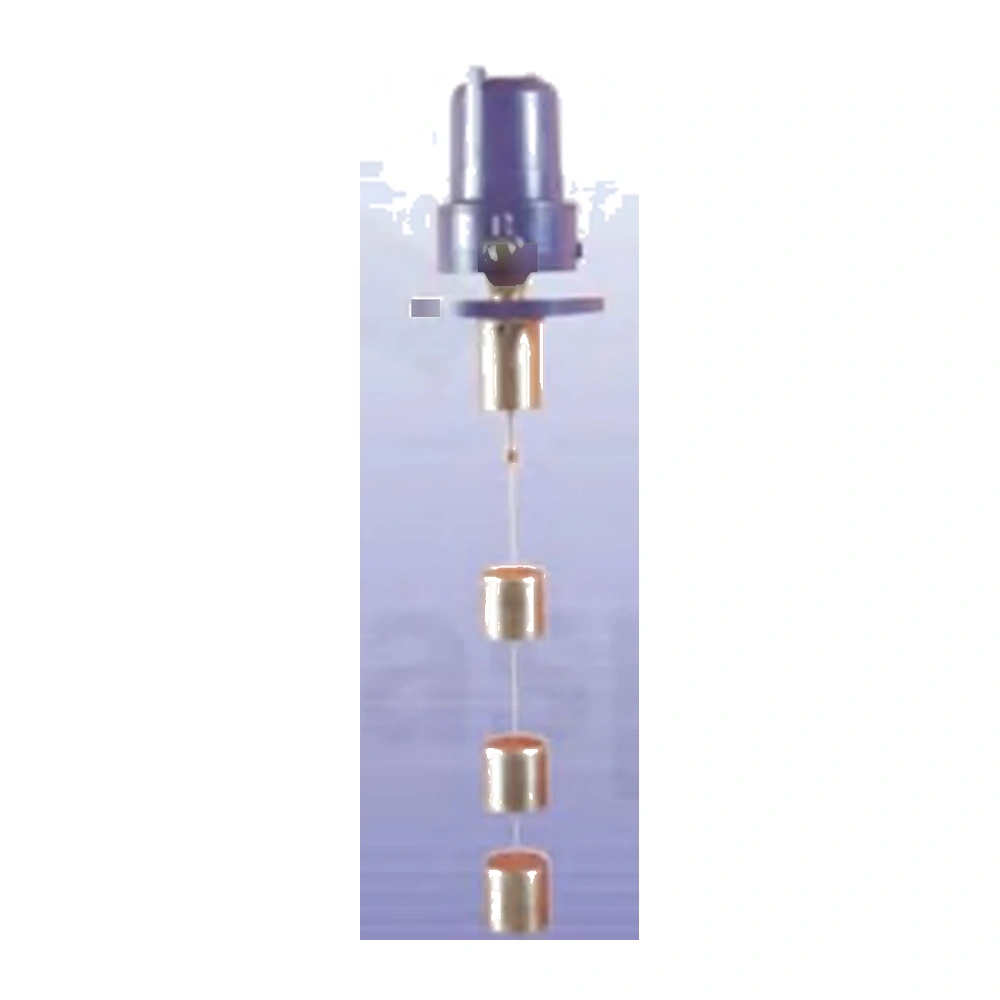

Magnetic level switch
The magnetic level switch senses tank-level changes using a float connected to a magnetic piston and operates an electrical or pneumatic contact. The float can be mounted inside th

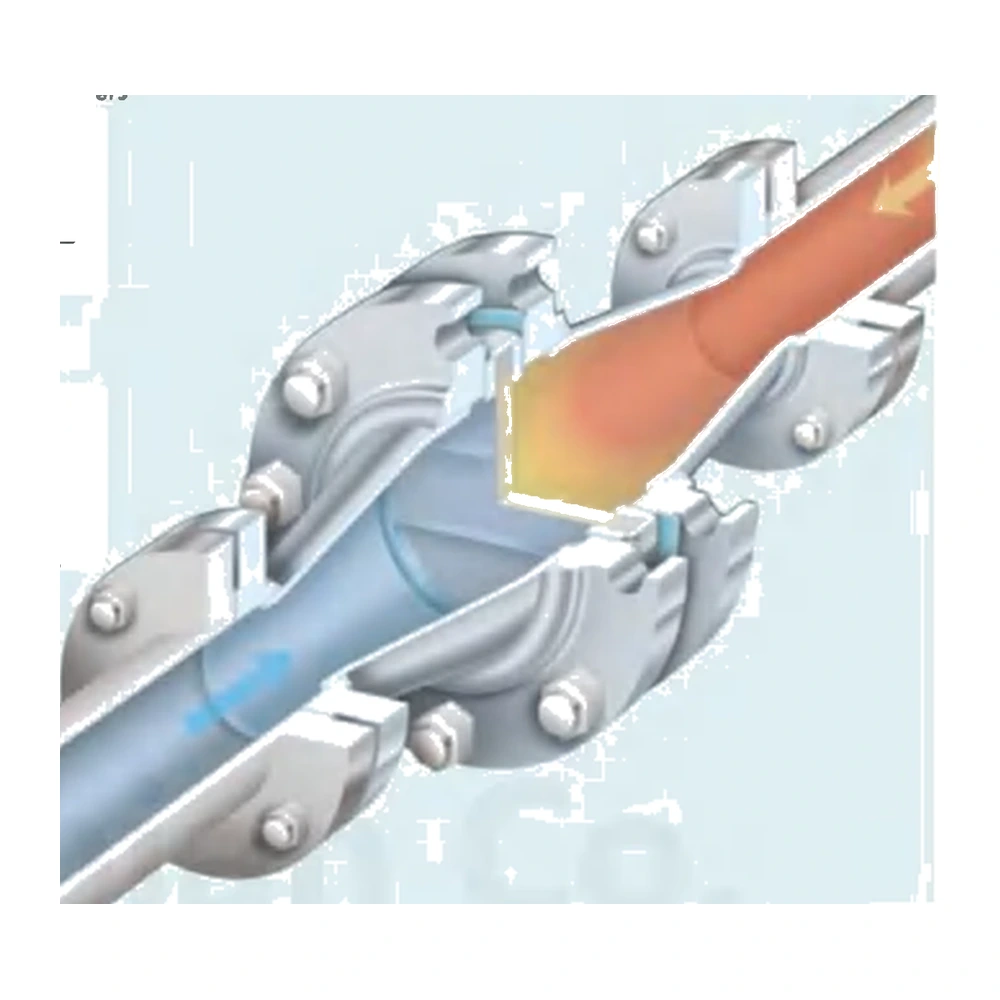

Specifications & orderTank and pipeline flame arrestor
A flame arrestor limits flame propagation between gas spaces in a tank or pipeline. Its element subdivides the flow and removes heat from the flame; multilayer stainless-steel wire
Specifications & order

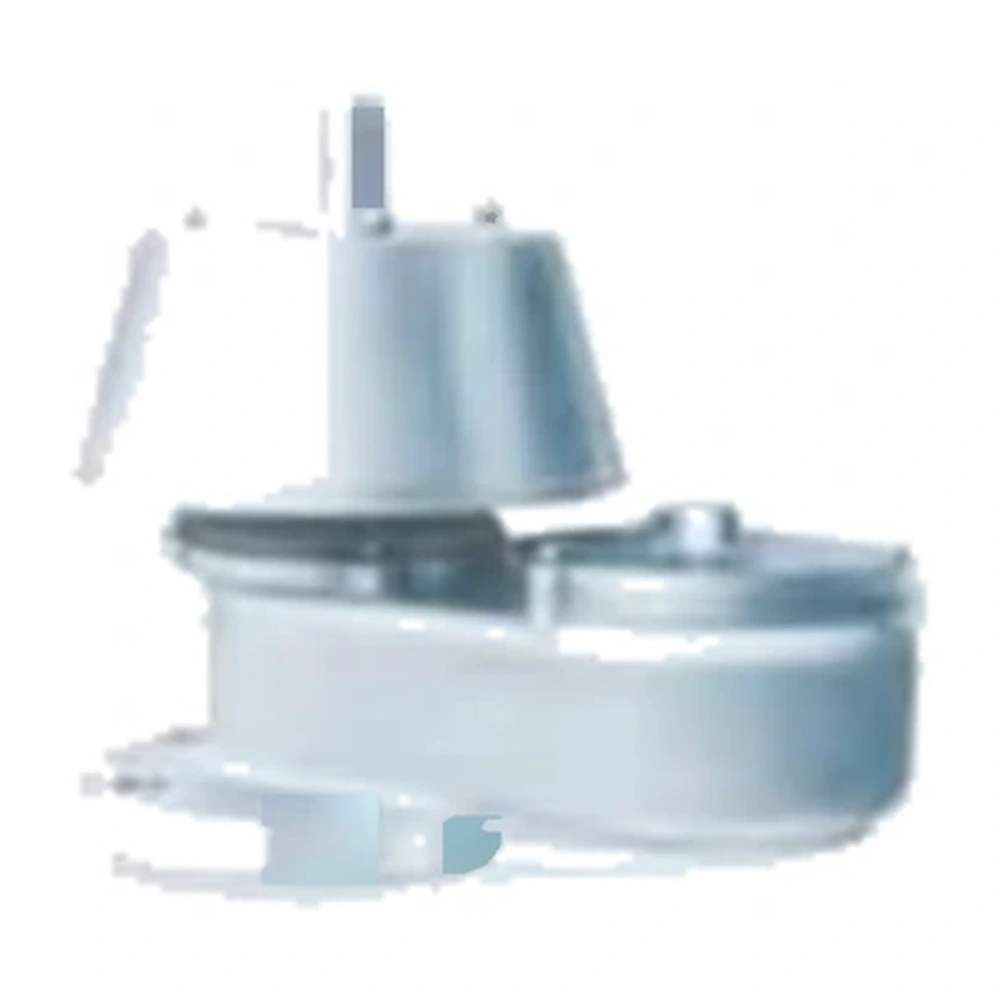

Tank pressure and vacuum relief valve
The pressure-and-vacuum relief valve keeps an atmospheric storage tank between two set points. During filling and emptying, its pressure and vacuum functions protect against excess
Specifications & order
R102 tank vacuum relief valve
The R102 vacuum relief valve protects a tank against a reduction in internal pressure. It admits air to compensate for vacuum and is a separate configuration from an emergency pres

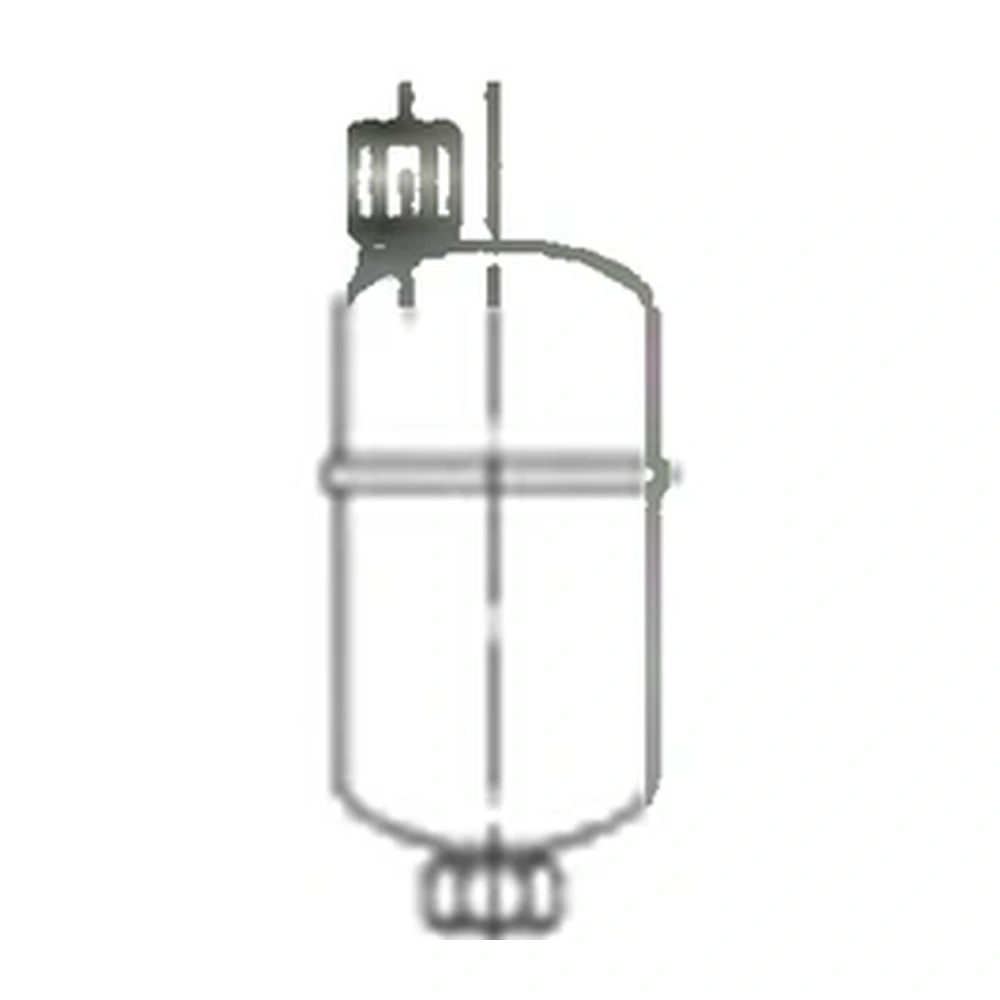

Specifications & orderMechanical inverted-bucket steam trap
The inverted-bucket steam trap operates on the density difference between steam and condensate. Steam collecting under the bucket lifts it and closes the outlet valve at the top. A
Specifications & order

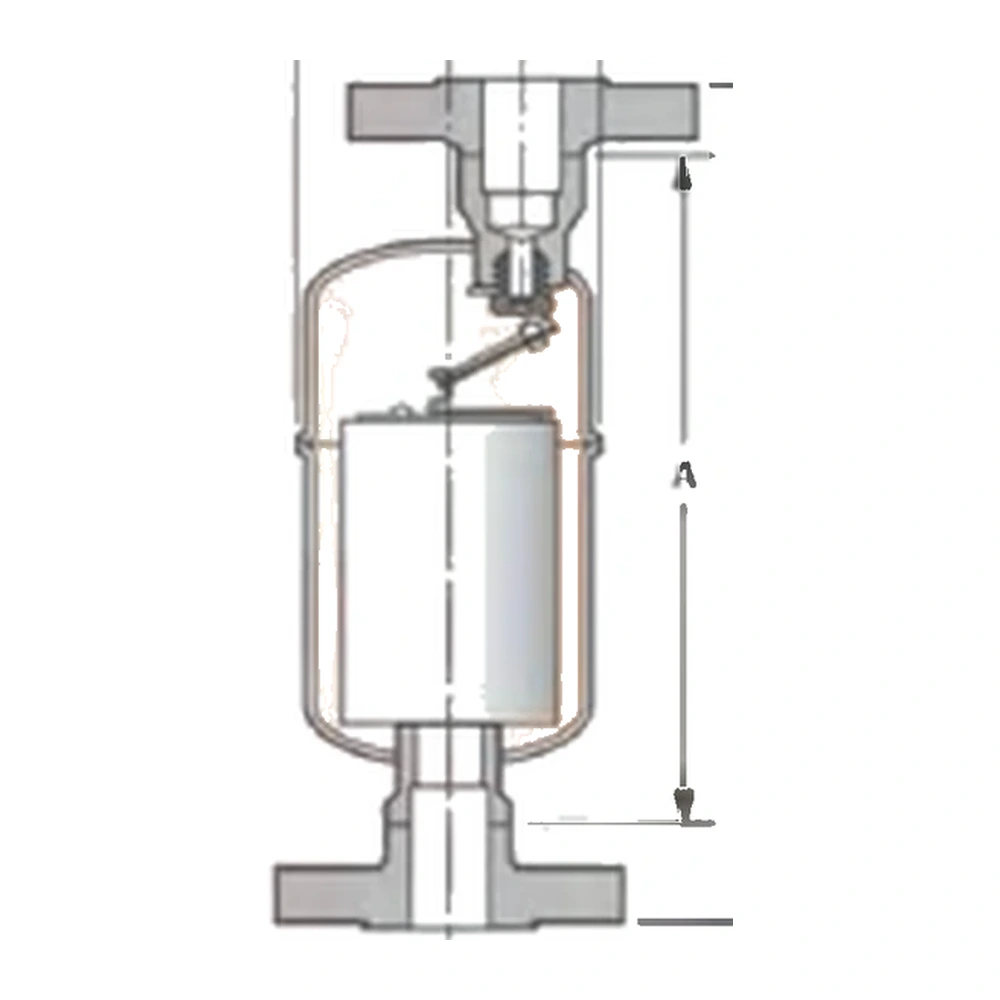

Stainless inverted-bucket steam trap
The Series 1000 inverted-bucket steam trap is described for vertical upward installation. This steam-condensate configuration has a 304L stainless-steel body, 304 internals and a h
Specifications & order

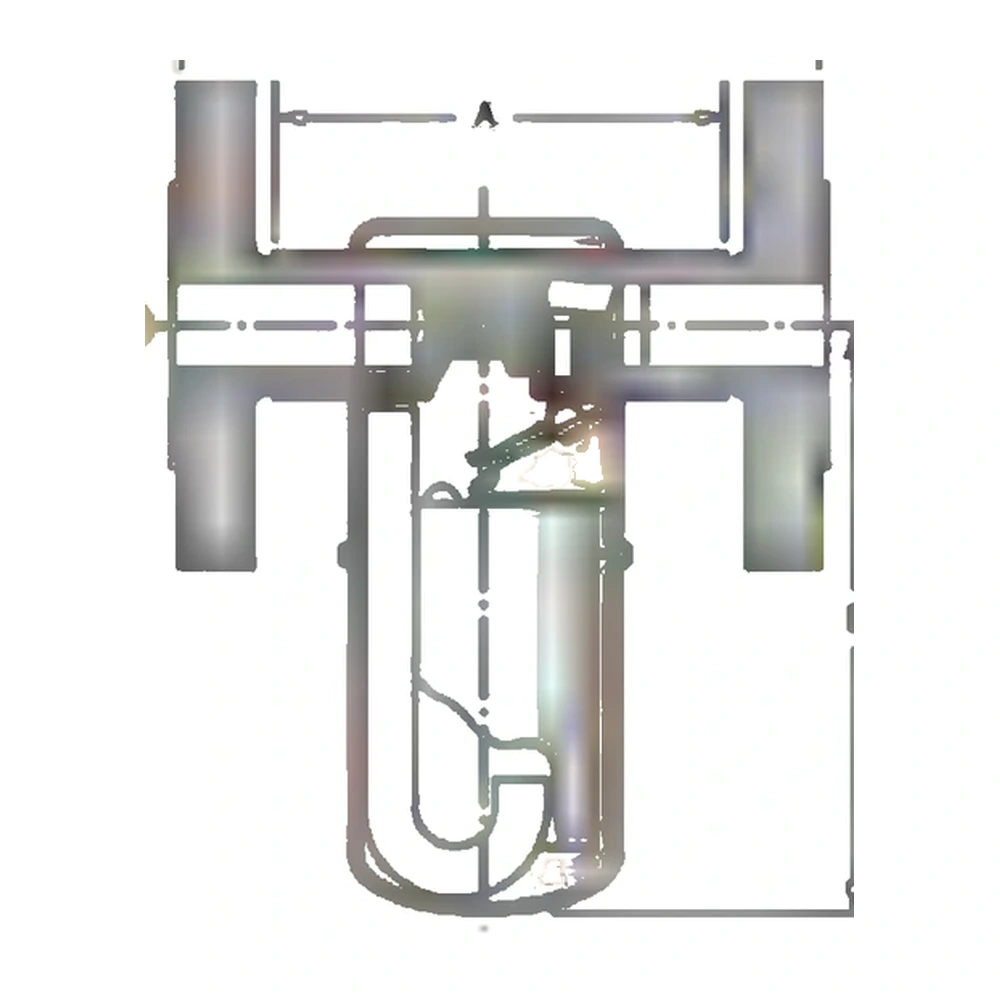

Inverted-bucket steam trap for horizontal installation
This inverted-bucket steam trap is described for horizontal installation and includes the 1800 model group. Condensate is discharged at saturation temperature, with each model's ca
Specifications & order

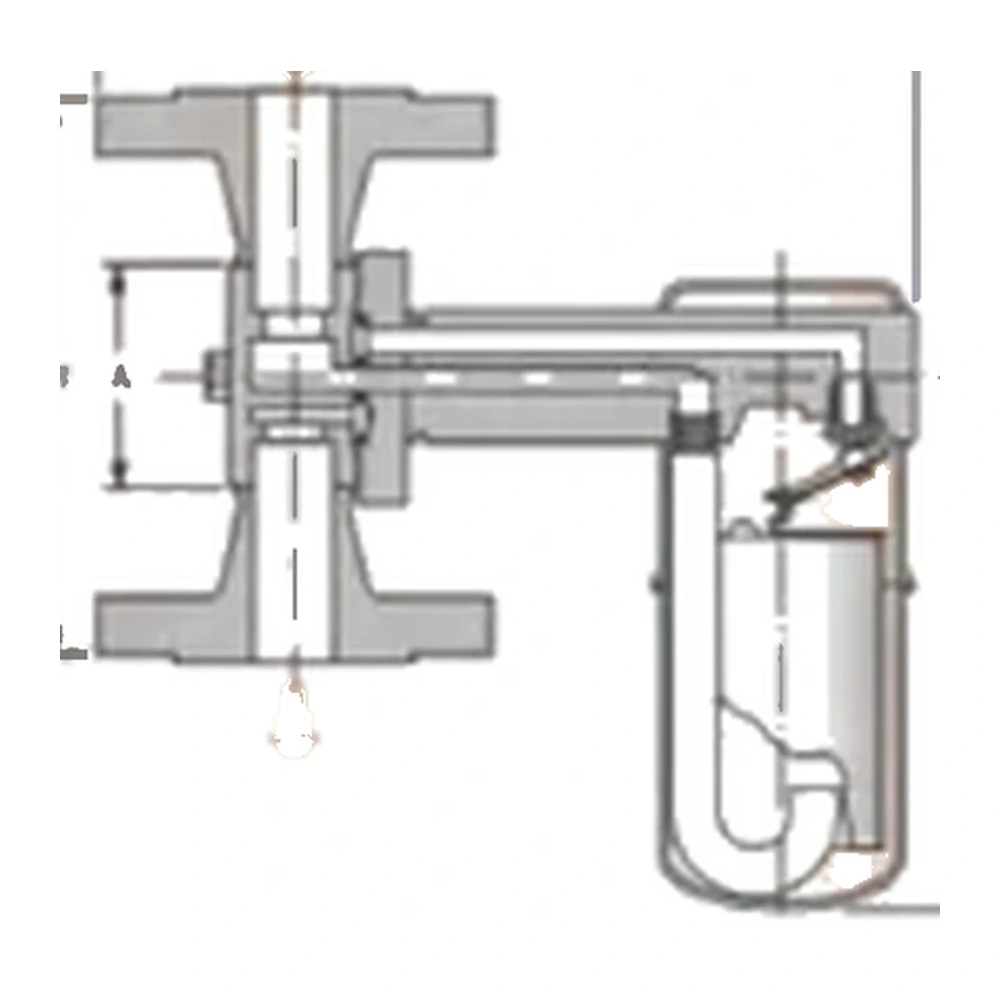

Universal-connection steam trap
The universal-connection steam trap is intended for a connector, PPC or TVS station, or manifold. The separate connector permits installation in different positions; models 2010 an
Specifications & order

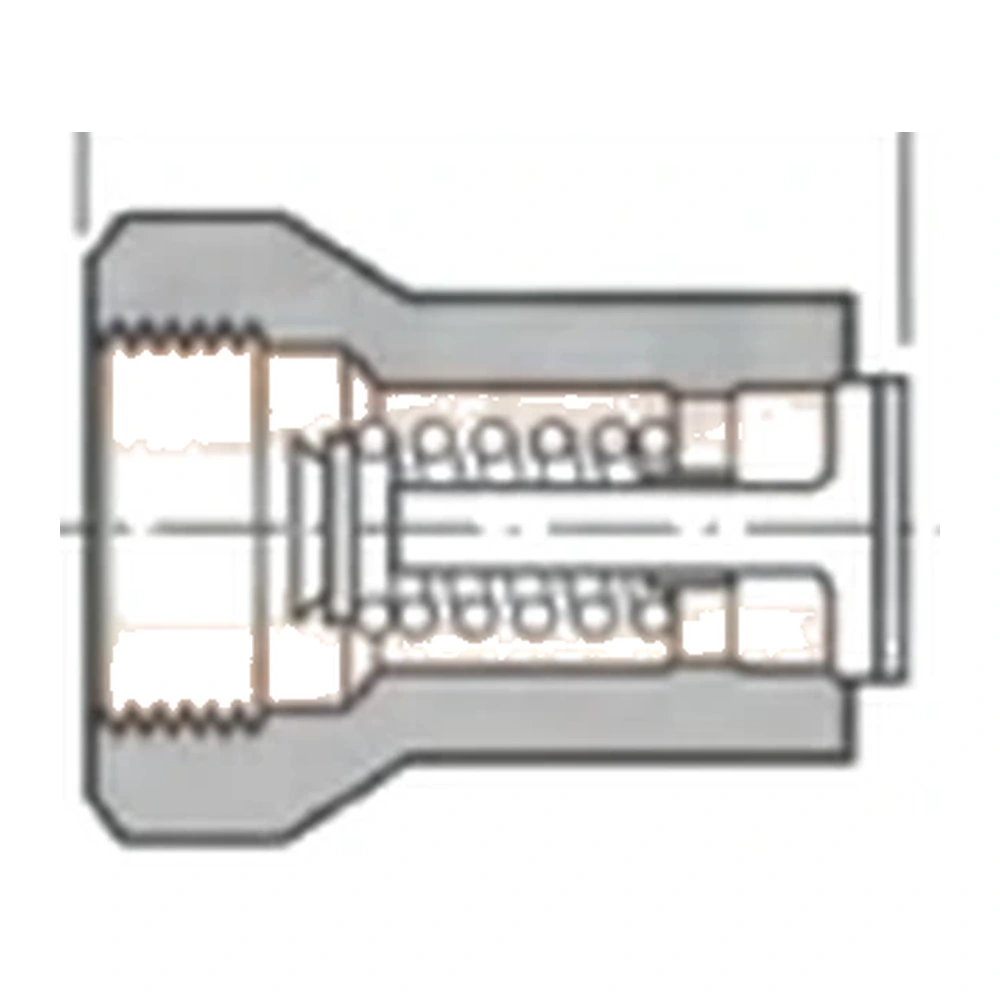

Steam-trap check valves, freeze drains and vacuum breakers
The steam-trap accessories include a check valve, a Pop Drain automatic drain and a vacuum breaker. The stainless-steel check valve is described for traps above the drained equipme
Specifications & order

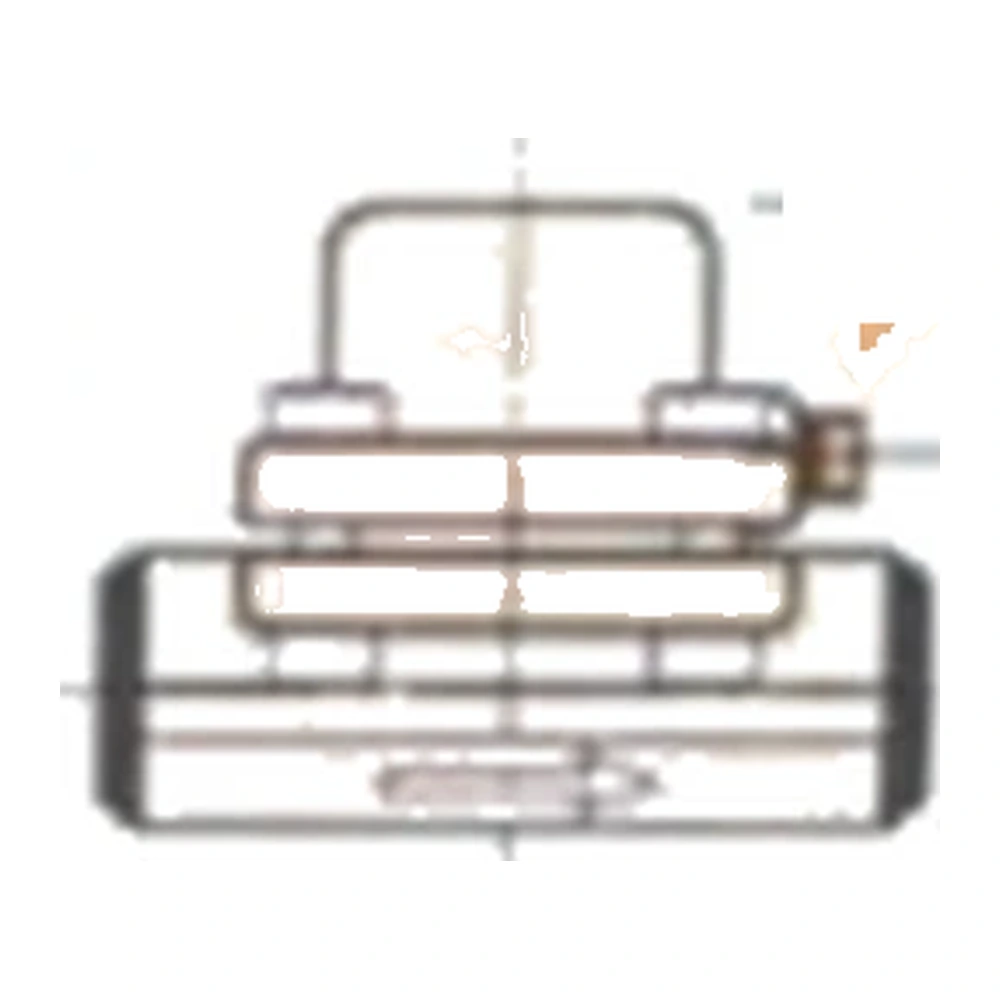

Thermodynamic disc trap with strainer
The CD60 thermodynamic trap uses a control disc and integral strainer. Incoming condensate lifts the disc from the inlet; steam then changes velocity and pressure in the control ch
Specifications & order

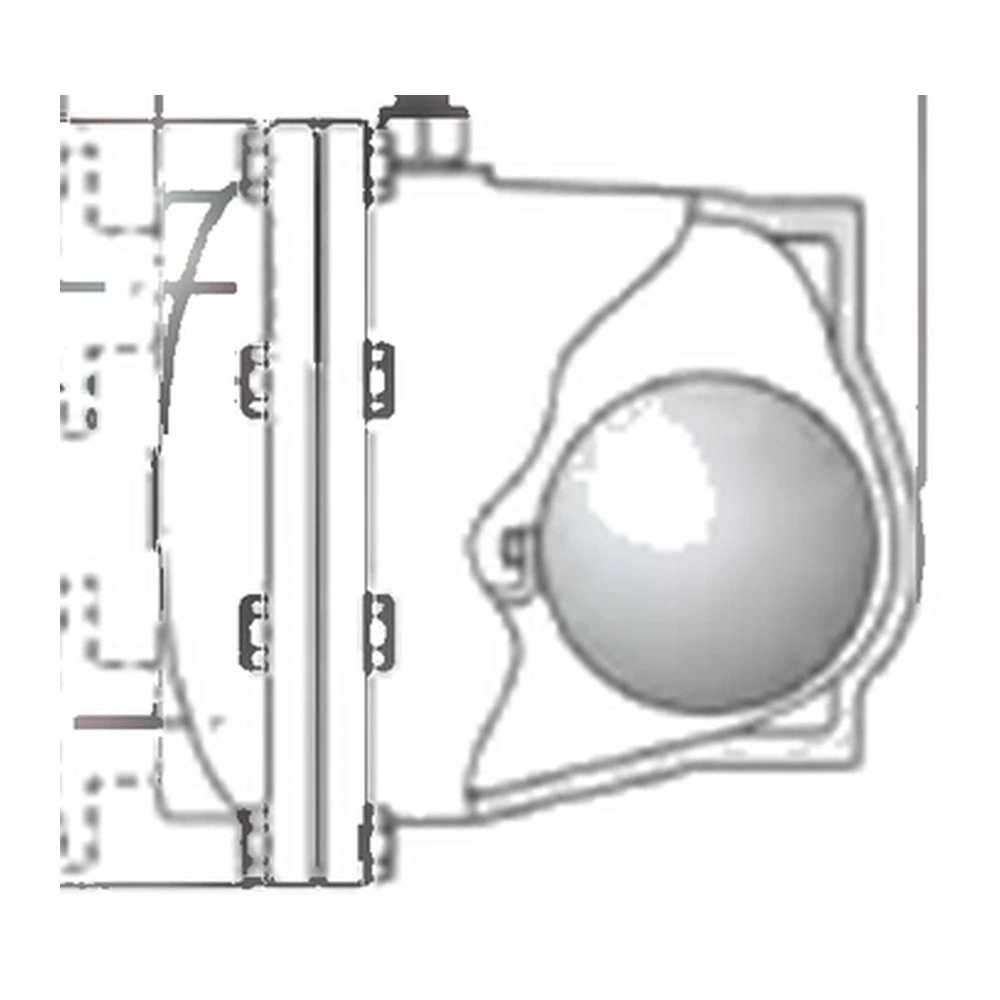

Float and thermostatic steam trap
The float-and-thermostatic trap is described for horizontal installation and steam-condensate discharge. A closed float controls condensate discharge, while a thermostatic vent han
Specifications & order

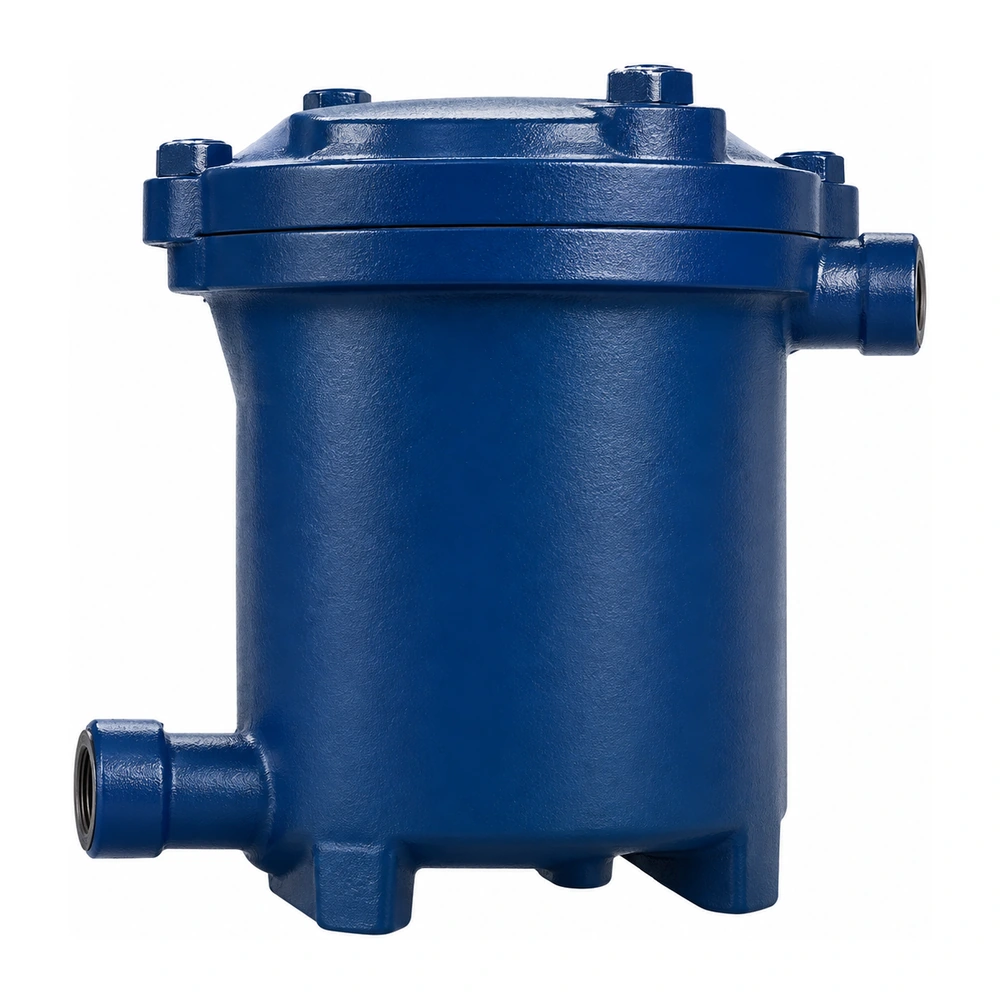

Condensate pumping trap
The pumping trap handles condensate from heat exchangers or heating coils when equipment pressure falls below the condensate-return pressure. It is also described for draining equi

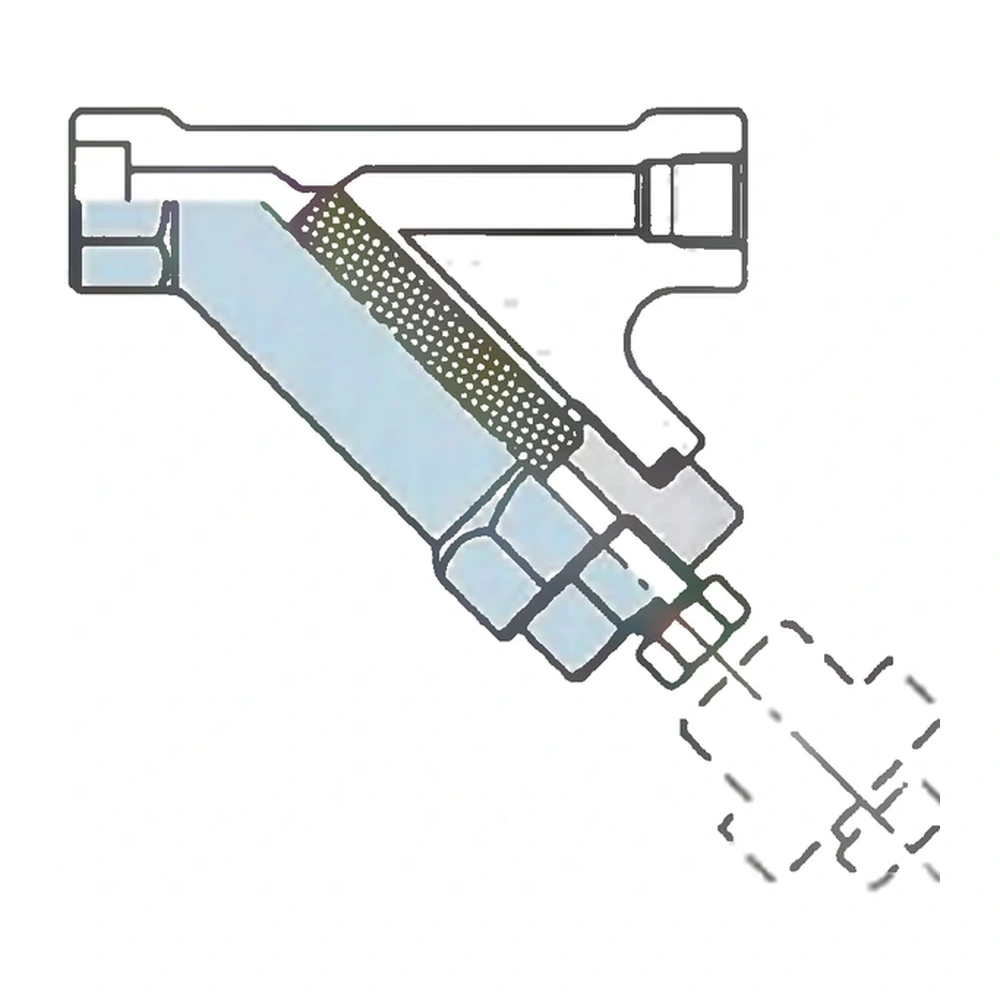

Specifications & orderThreaded Y-strainer
The screwed or socket-weld Y-strainer separates solid particles using a screen in its side branch. Body materials are carbon steel or stainless steel, with a matching-material cove
Specifications & order

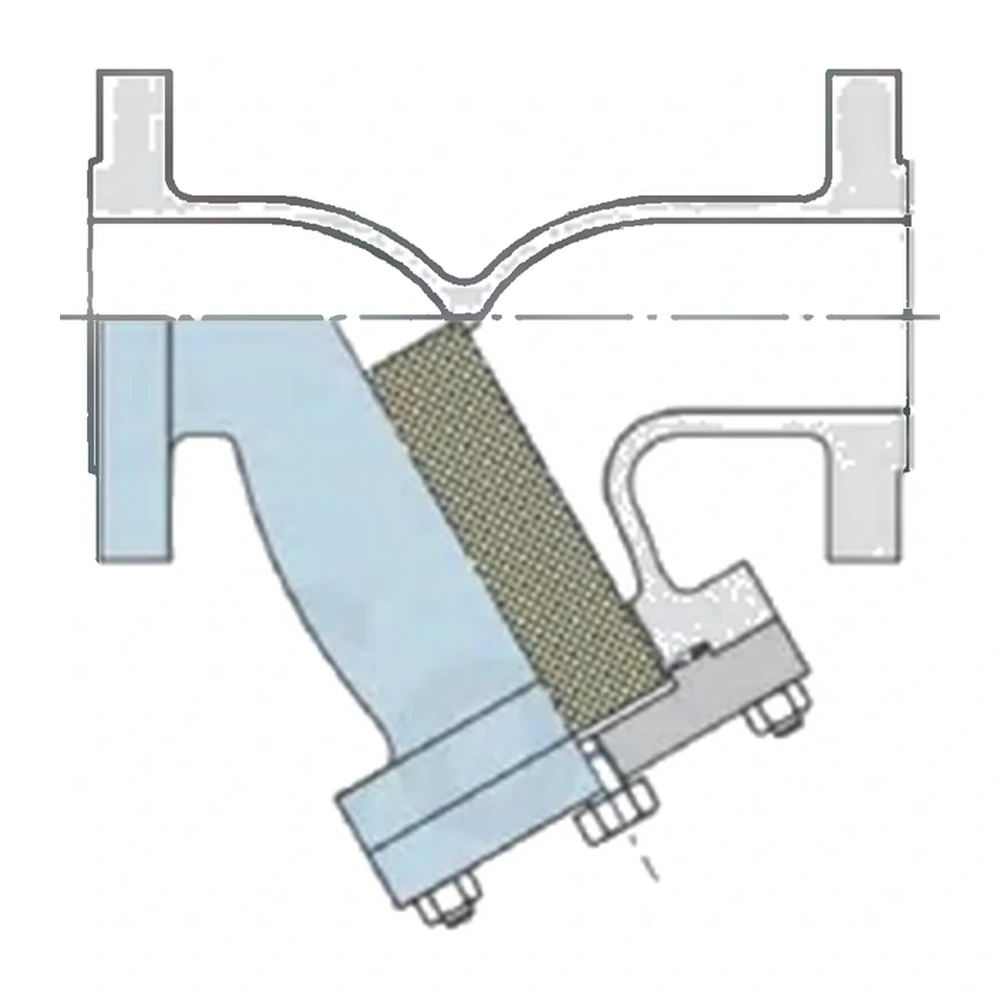

Flanged Y-strainer
The flanged Y-strainer has a bolted cover for screen access. Carbon steel, low-temperature steel and stainless steel are listed for the body, with a compatible cover material. A 31
Specifications & order

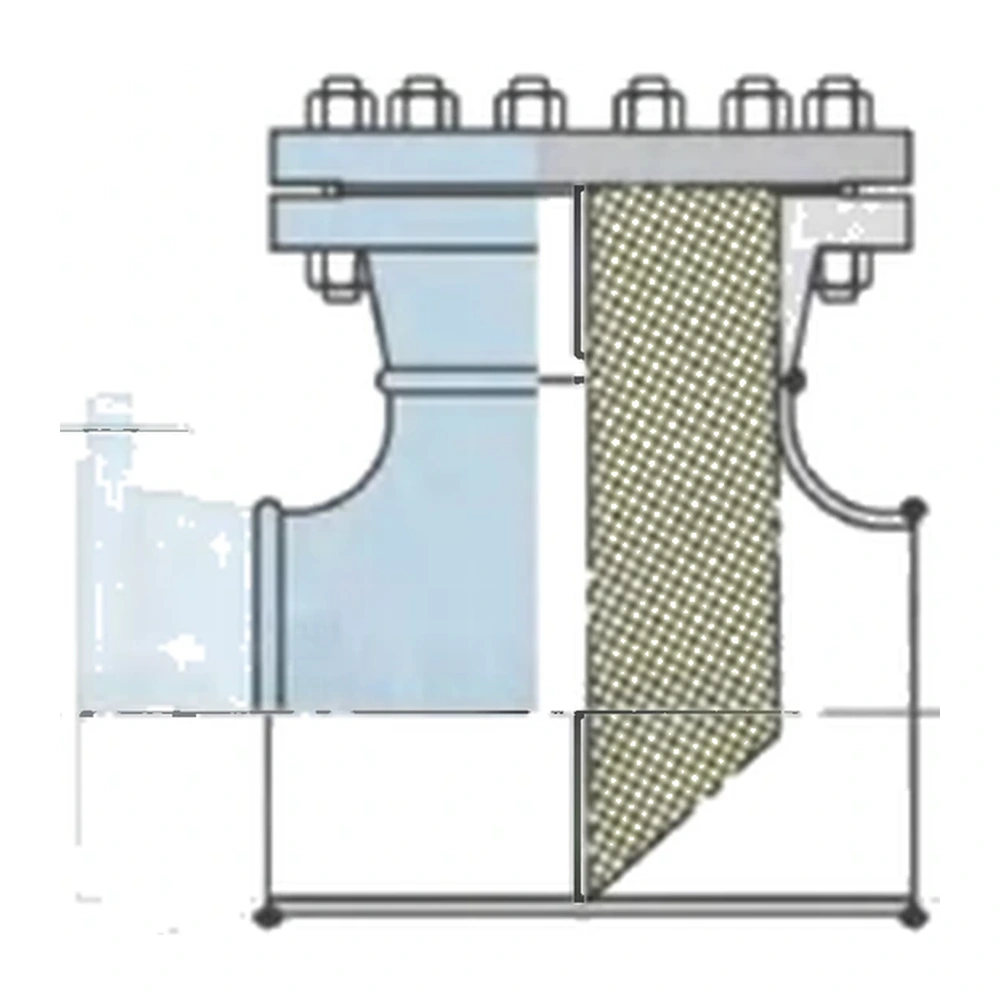

Cast steel T-strainer
The cast-steel T-strainer holds a basket in the branch perpendicular to the main flow path, with access through a bolted cover flange. Body options include carbon steel, low-temper
Specifications & order

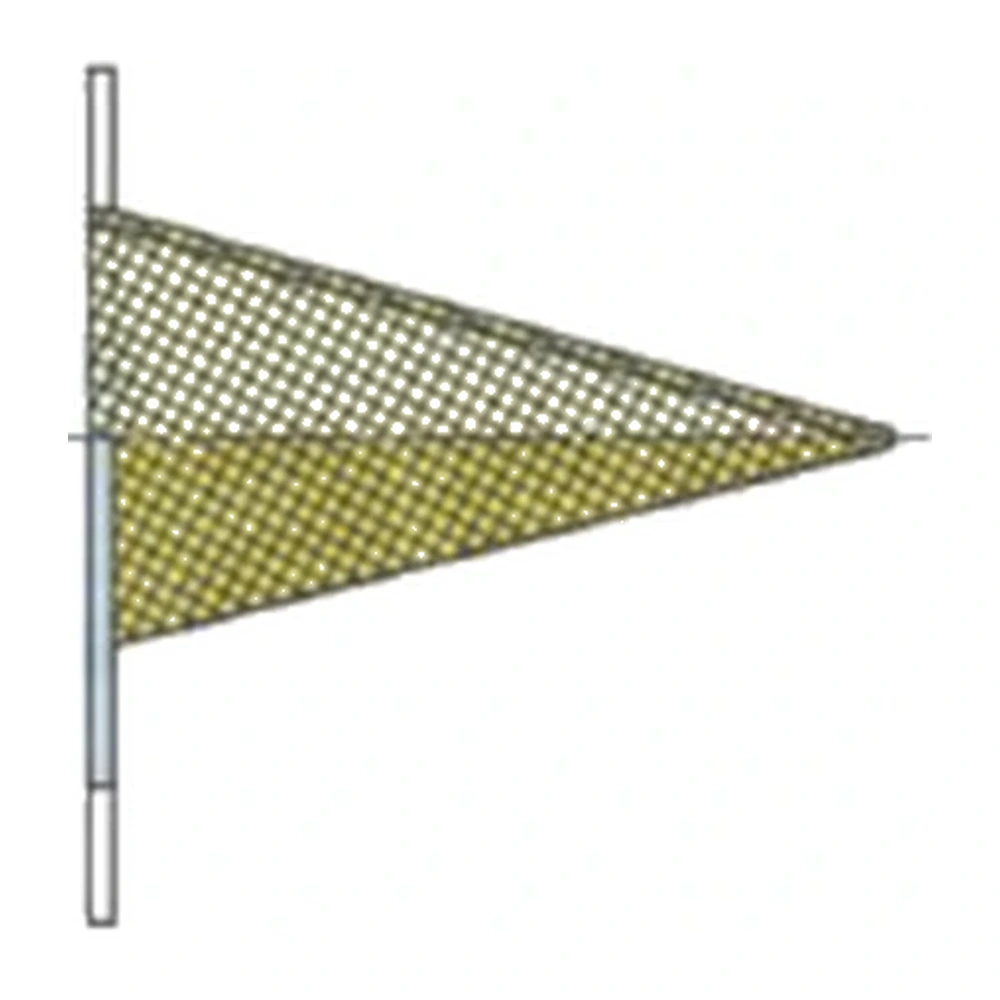

Temporary cone strainer
The temporary cone strainer is intended for short test and start-up periods to capture debris left in a pipeline. A flat mounting face fits between flanges, while the perforated co
Specifications & order

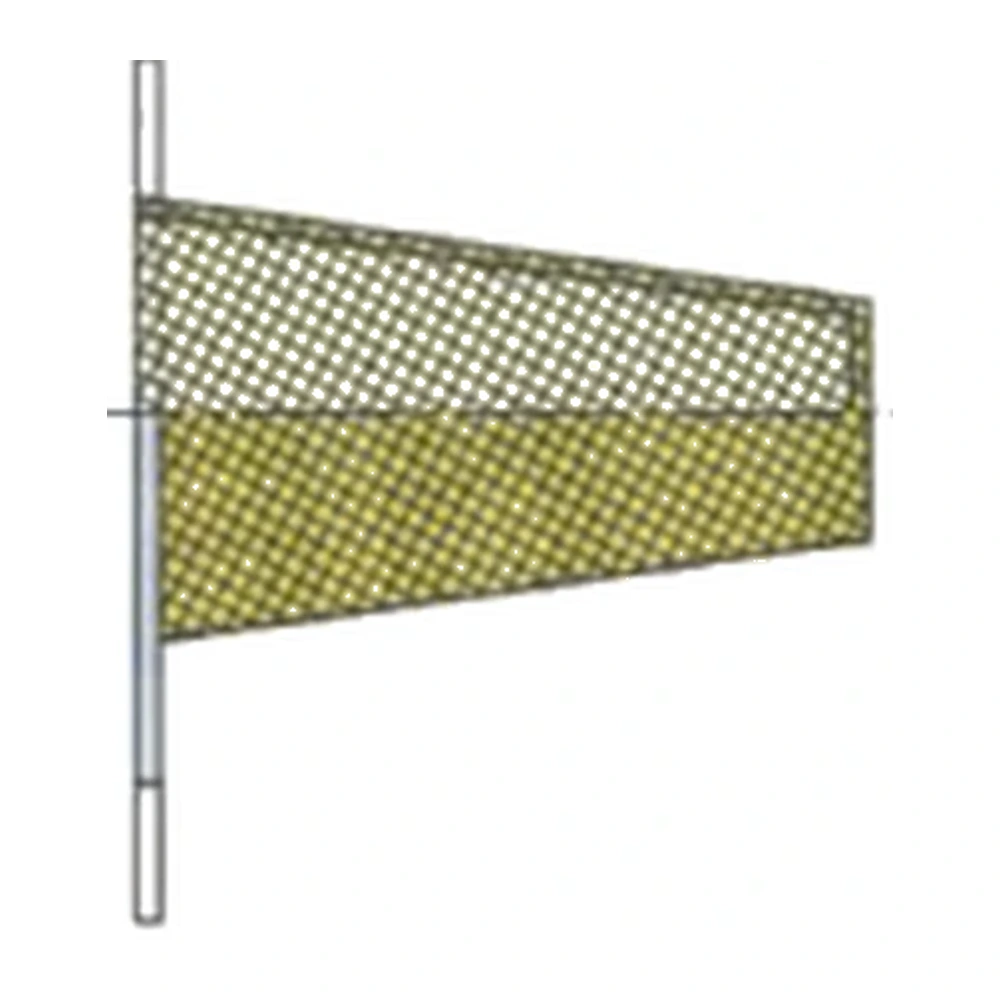

Temporary truncated-cone strainer
The temporary truncated-cone strainer protects equipment from residual debris during pipeline testing and start-up. Unlike a full cone, it has a shortened end; reinforcement crosse
Specifications & order

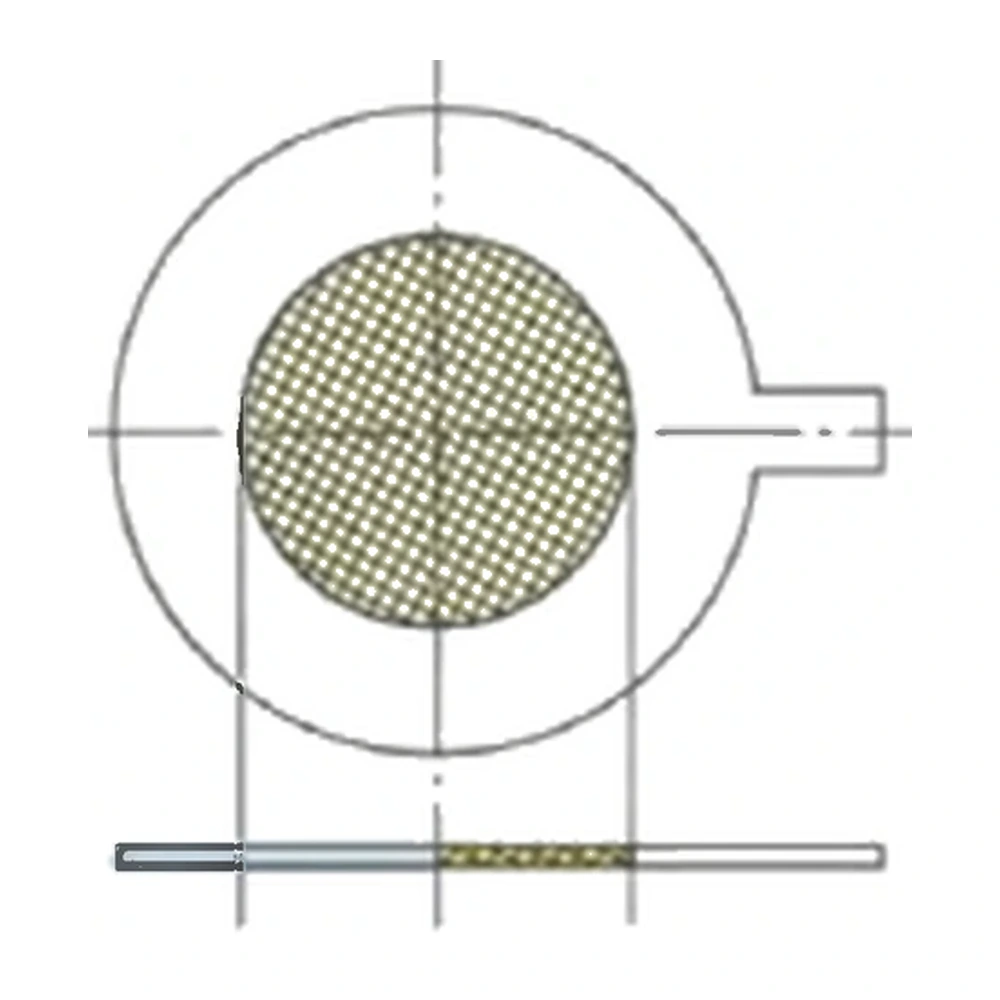

Temporary flat strainer
The temporary flat strainer places a filtering plate between two flanges for short test or start-up periods. Compared with a cone, the flat form occupies less axial space; open are
Specifications & order

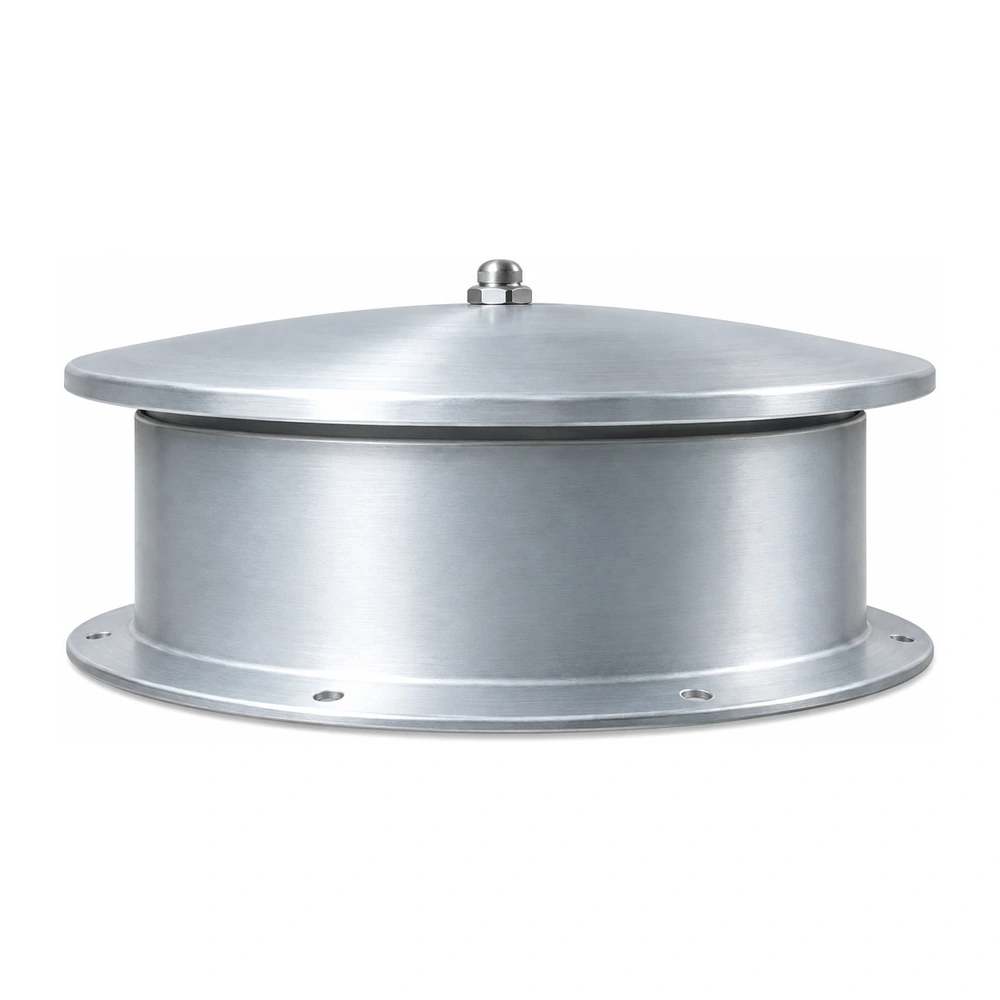

R128 tank emergency vent
The R128 emergency vent relieves positive pressure from a storage tank. It has a larger opening than the R102 vacuum relief valve and serves the pressure discharge path rather than
Specifications & orderNeed help specifying a valve?
Tell us the fluid, operating temperature and pressure, size and end connection. Attach your purchase list if you have one.
Request a quoteRequest a quote
Tell us the fluid, operating temperature and pressure, size and end connection. Attach your purchase list if you have one.
Chat on WhatsApp ↗This form requests a review and quotation. Submission does not confirm stock or create an order.
Track a request
Enter the reference and private tracking code shown after submission.
Ordering questions
How do I start an order?
Open the product page and select “Request this product”. Include specifications and quantities in the form, or send them on WhatsApp.
Does submitting a request confirm a purchase?
No. We first review the specification, availability and supply terms, then prepare a proposal.
What details should I provide?
Valve type, size, pressure class, body material, end connection, quantity and operating conditions. Attach a purchase list if available.
Are the images sufficient for final selection?
Images help identify a product. Final selection must match your operating conditions and order specifications.
How can I track a request?
Keep your reference and private tracking code, then use the tracking form. WhatsApp is also available for direct discussion.
Which file formats are accepted?
The form accepts a PDF, XLSX or CSV file up to 10 MiB. Do not include unrelated personal information.
