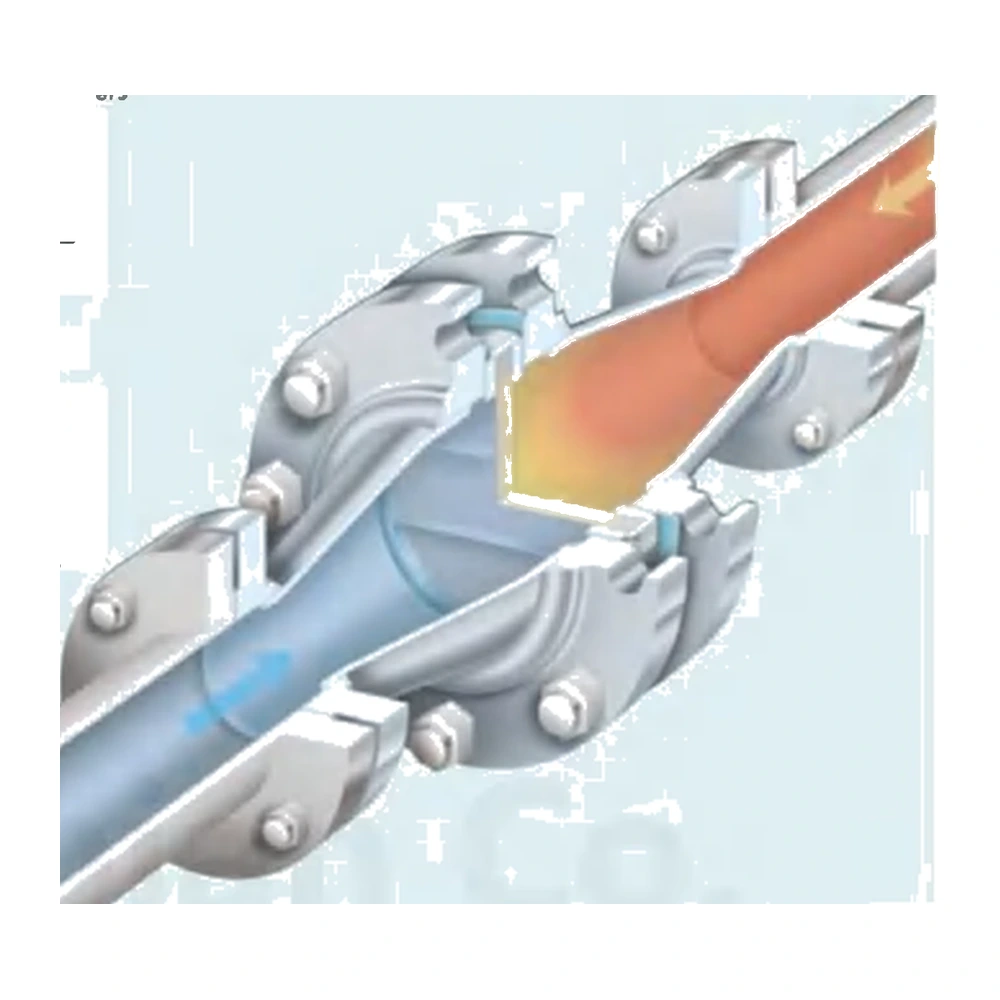

Tank and pipeline flame arrestor
A flame arrestor limits flame propagation between gas spaces in a tank or pipeline. Its element subdivides the flow and removes heat from the flame; multilayer stainless-steel wire
Specifications & order

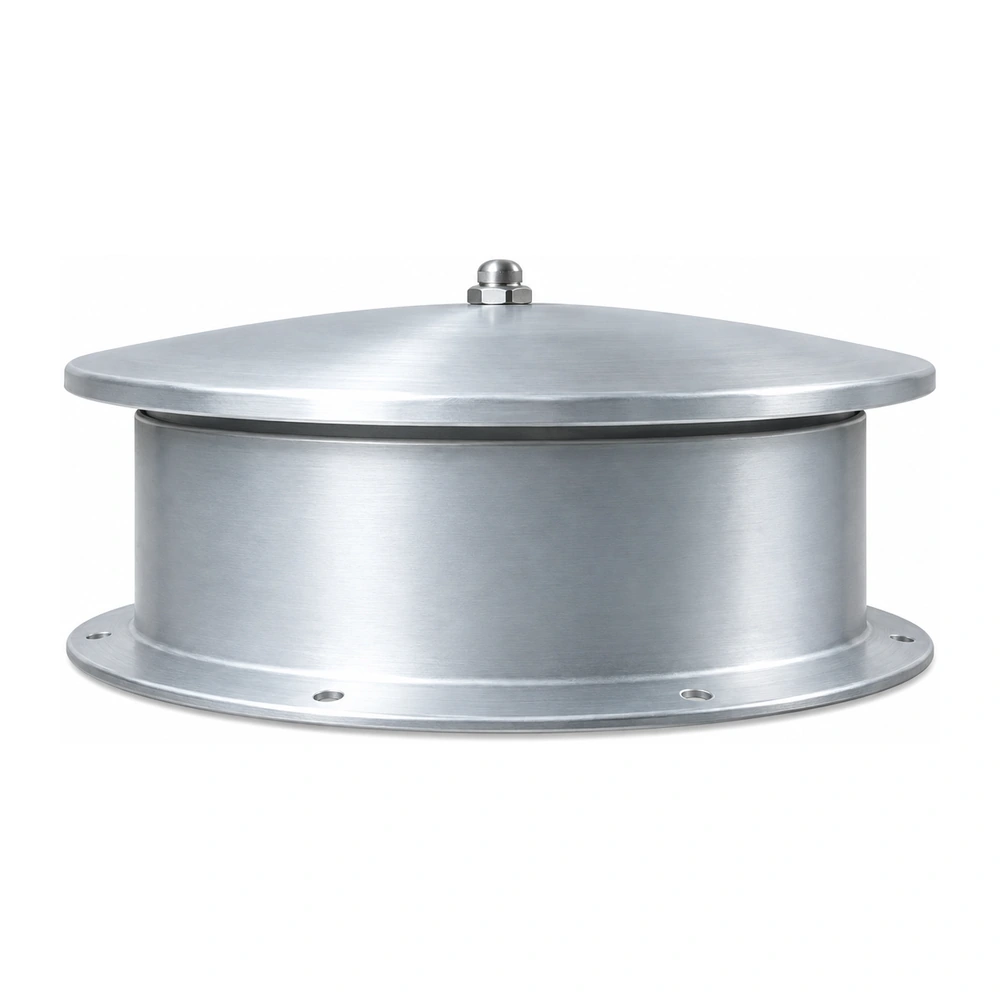

R128 tank emergency vent
The R128 emergency vent relieves positive pressure from a storage tank. It has a larger opening than the R102 vacuum relief valve and serves the pressure discharge path rather than the admission of air to compensate for vacuum. The size range is DN400–DN600, or 16–24 inches, with positive settings from 10 to 50 mbar. Carbon steel and 304 or 316 stainless steel body materials are described, with ISO PN10 or Class 150 flanges. State the required size, pressure setting and material in the inquiry.
Technical specifications
| Type | R128 |
|---|---|
| Function | Emergency tank pressure relief |
| Size range | DN400–DN600 / 16–24 in |
| Setting range | +10 to +50 mbar |
| Body materials | Carbon steel / Stainless steel 304 or 316 |
| Flanges | ISO PN10 / Class 150 |
More products

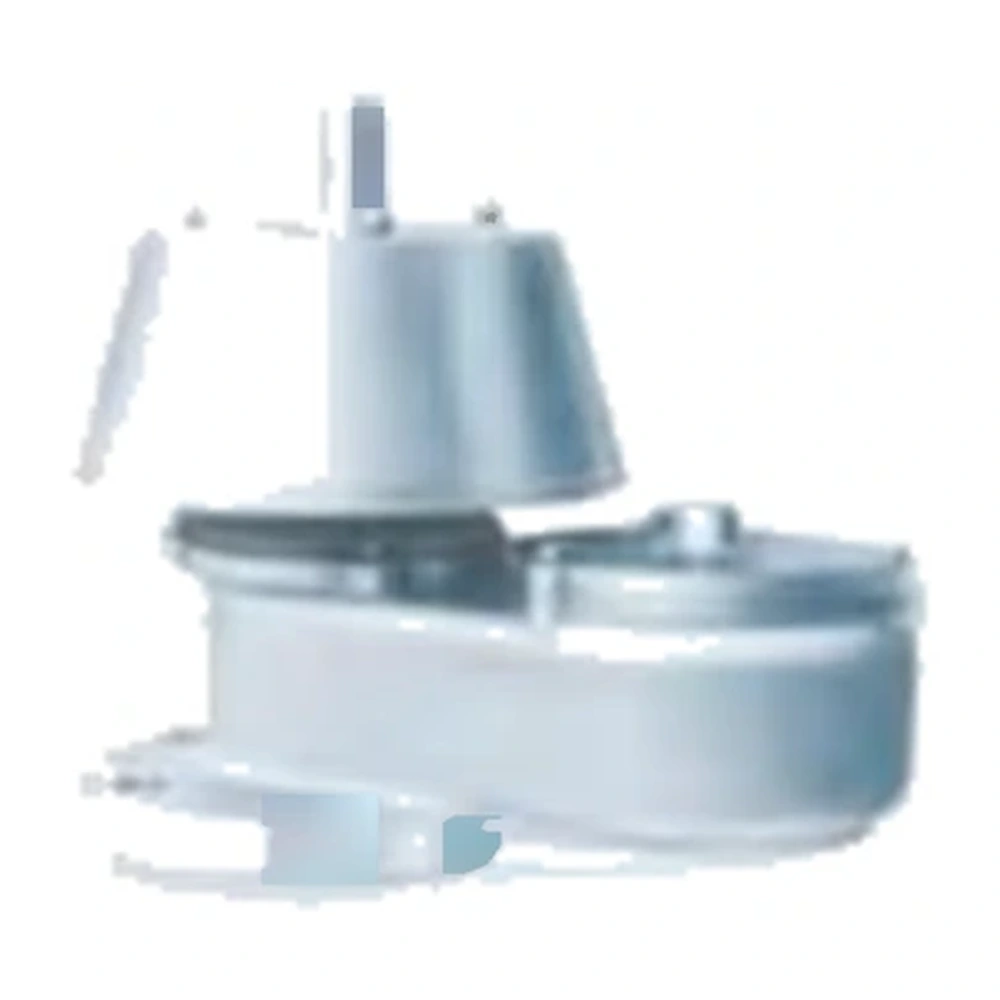

Tank pressure and vacuum relief valve
The pressure-and-vacuum relief valve keeps an atmospheric storage tank between two set points. During filling and emptying, its pressure and vacuum functions protect against excess
Specifications & order

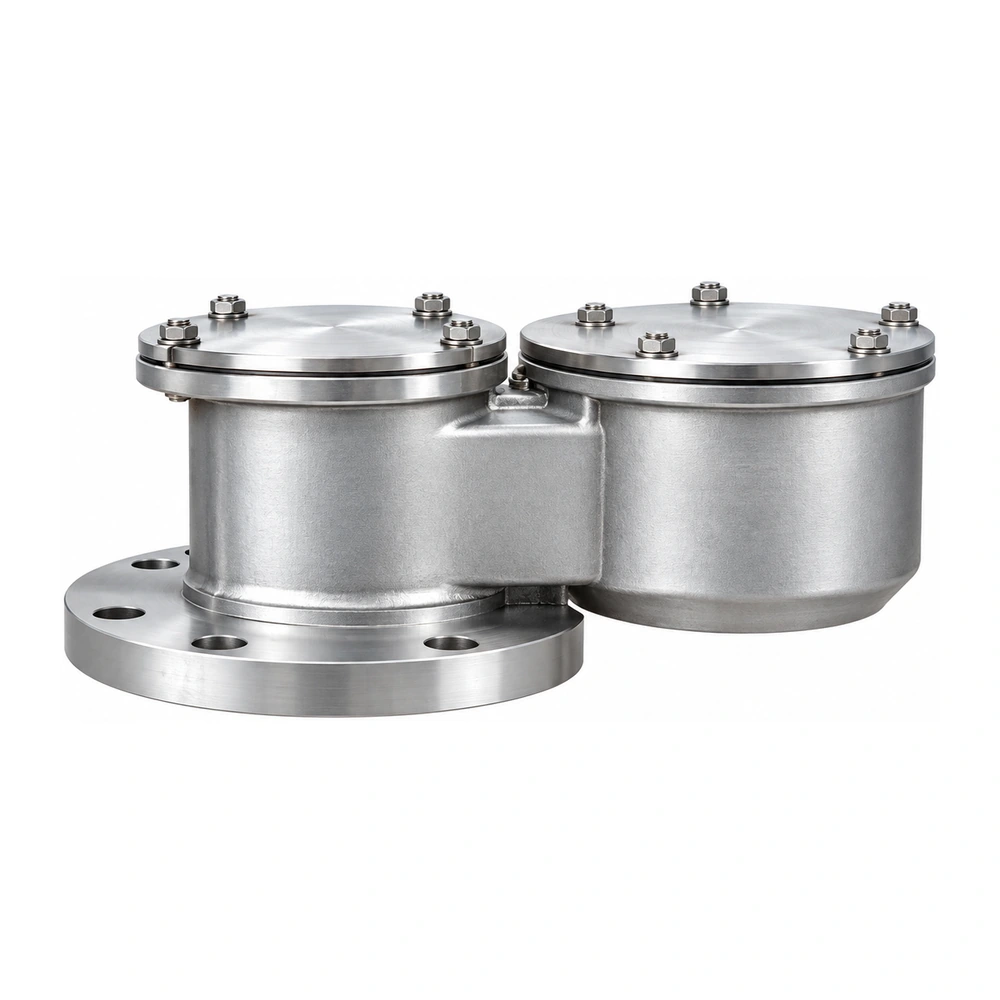

R102 tank vacuum relief valve
The R102 vacuum relief valve protects a tank against a reduction in internal pressure. It admits air to compensate for vacuum and is a separate configuration from an emergency pres
Specifications & order

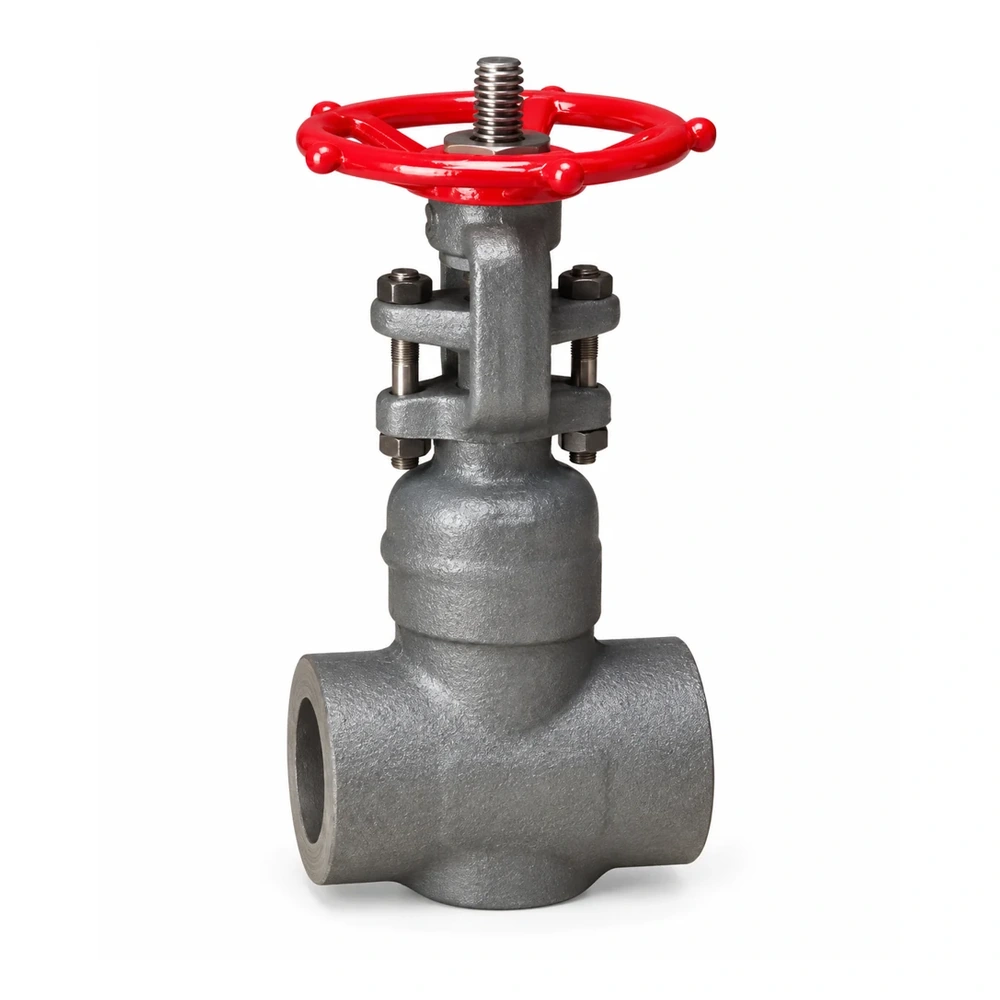

Forged gate, bolted bonnet, standard port
