Lubricated inverted-plug valve

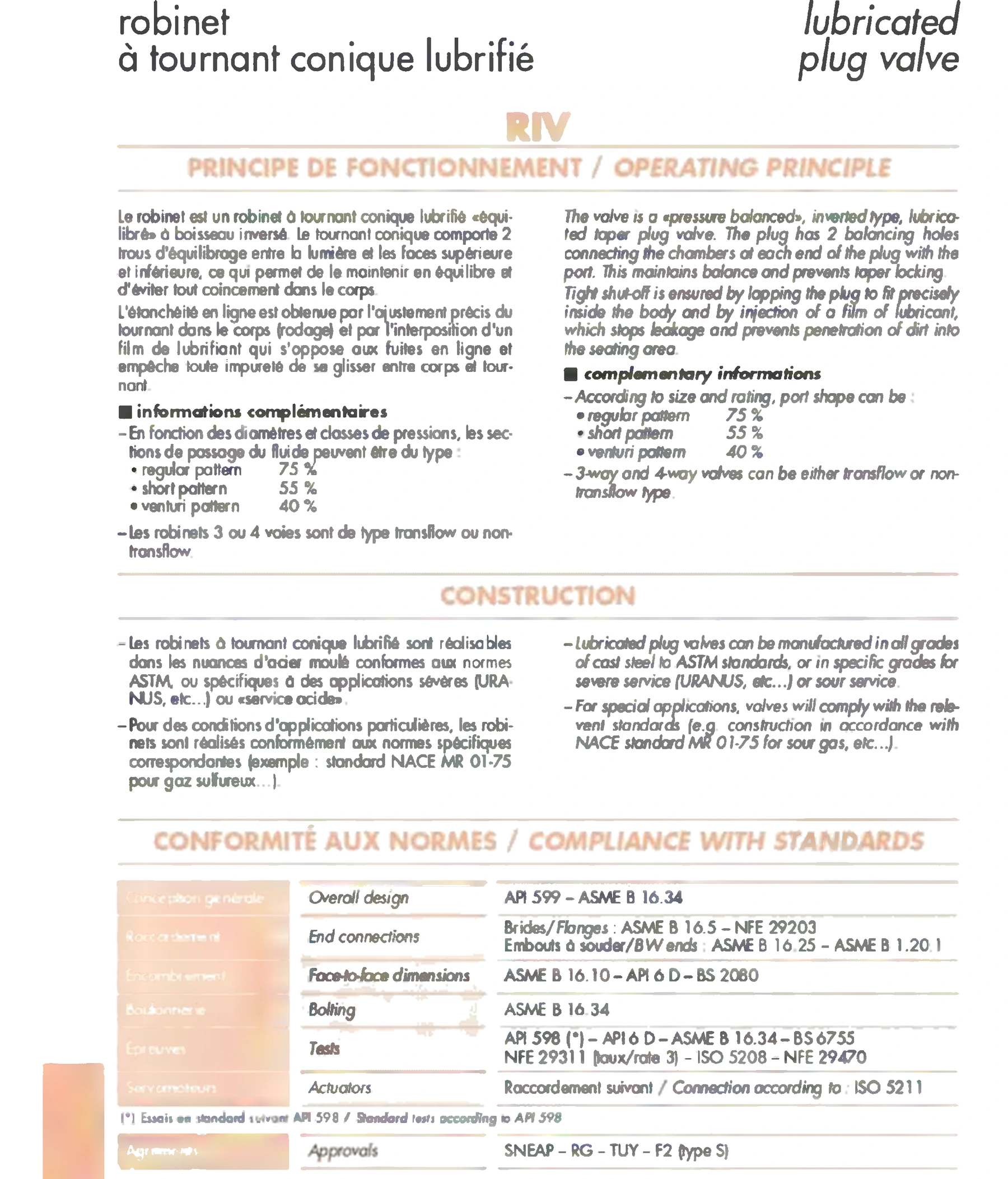

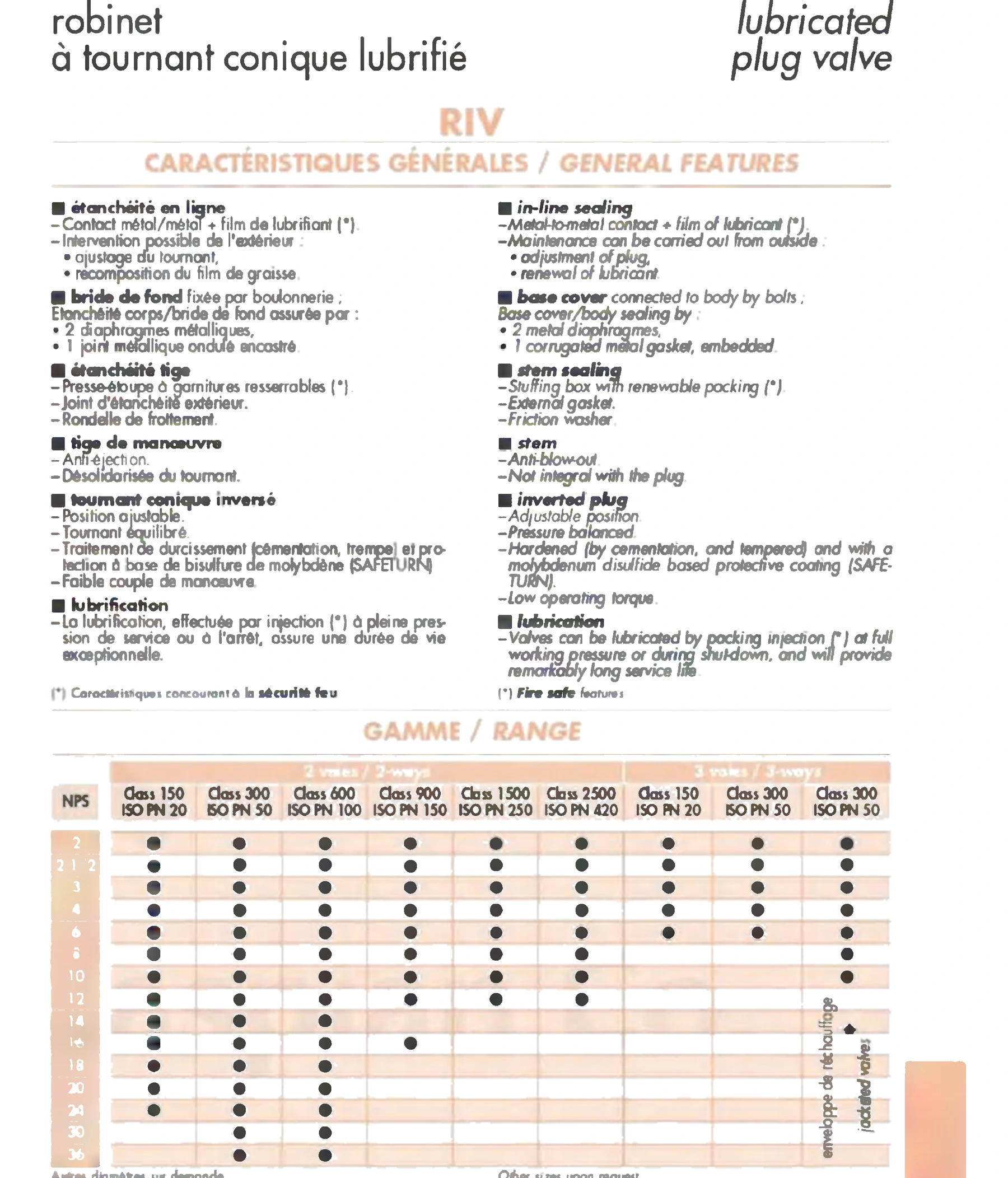

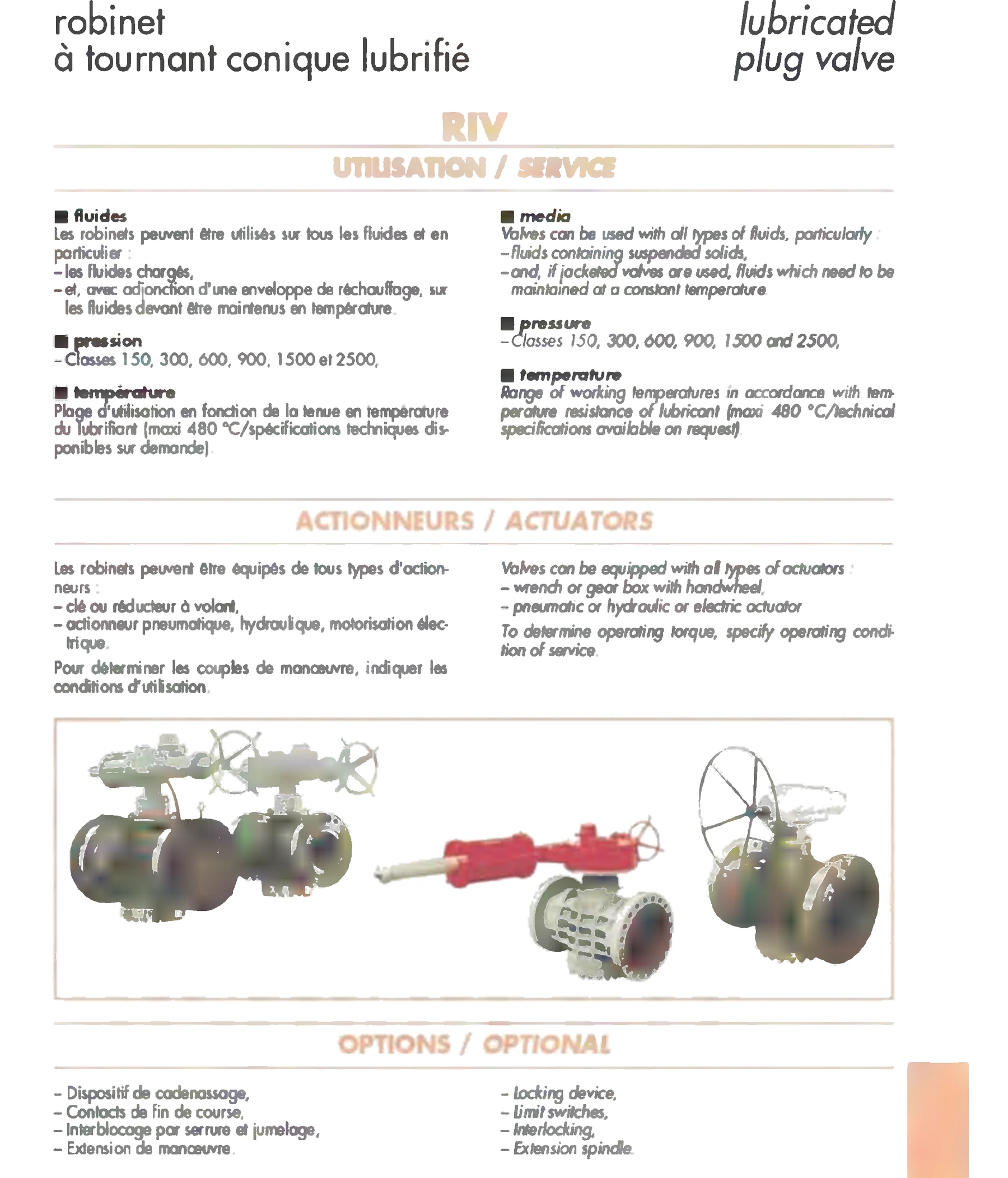

A lubricated plug valve uses a tapered plug for isolation. Lubricant compatibility, body material and fluid conditions must be checked during selection. Review dimensions, component materials and pressure-temperature data in the source images below. This is a historical reference; current standards, fluid compatibility and final specifications require confirmation before purchase.
