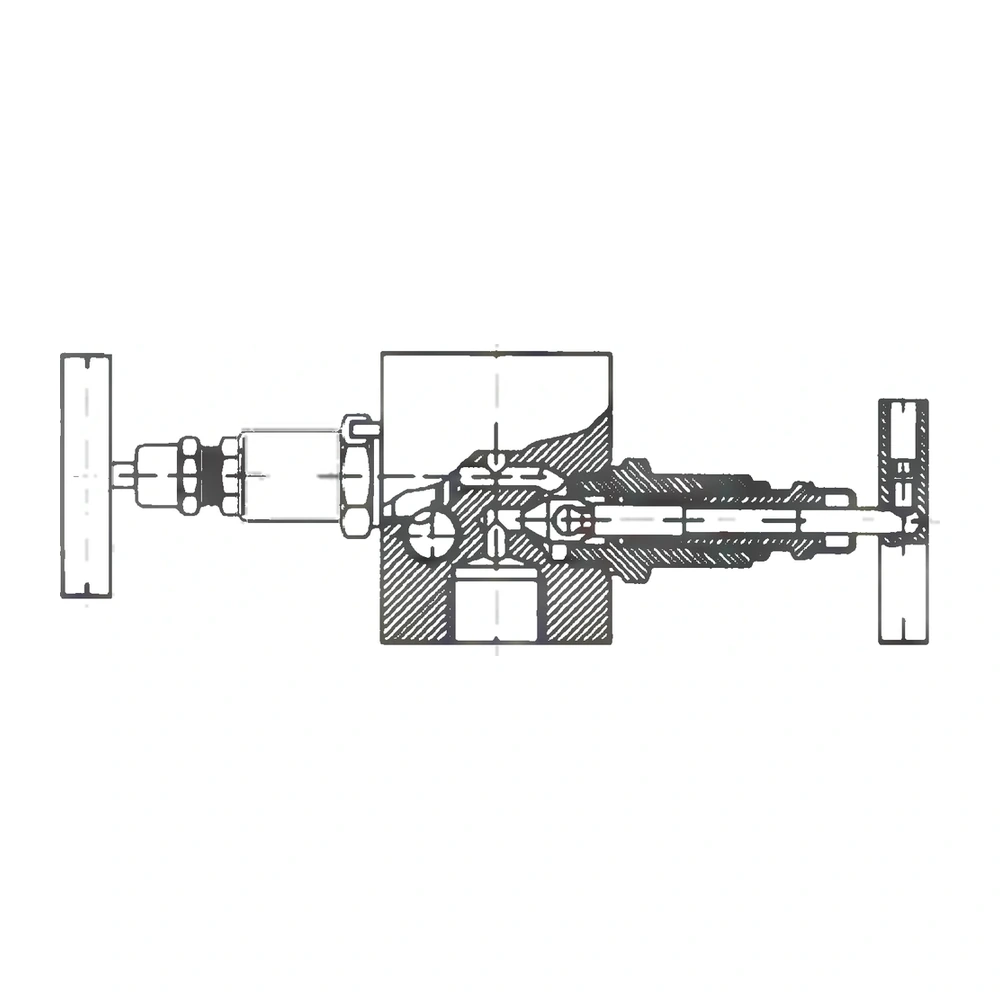

G12 high-pressure gauge valve
The G12 gauge valve isolates and operates the pressure-instrument connection. G12F and G12M show alternative connection arrangements for this duty, which is distinct from a simple two-way hand valve. The listed data give a 6000 psi rating, with 10000 psi on request, a maximum temperature of 240 °C and a maximum pressure of 400 bar. Standard size is NPS 1/2, with 3/4 inch on request. Confirm the combined operating envelope for the selected configuration.
Technical specifications
| Models | G12F / G12M |
|---|---|
| Rating | 6000 psi; 10000 psi on request |
| Maximum pressure | 400 bar |
| Maximum temperature | 240 °C |
| Size | NPS 1/2; 3/4 on request |
