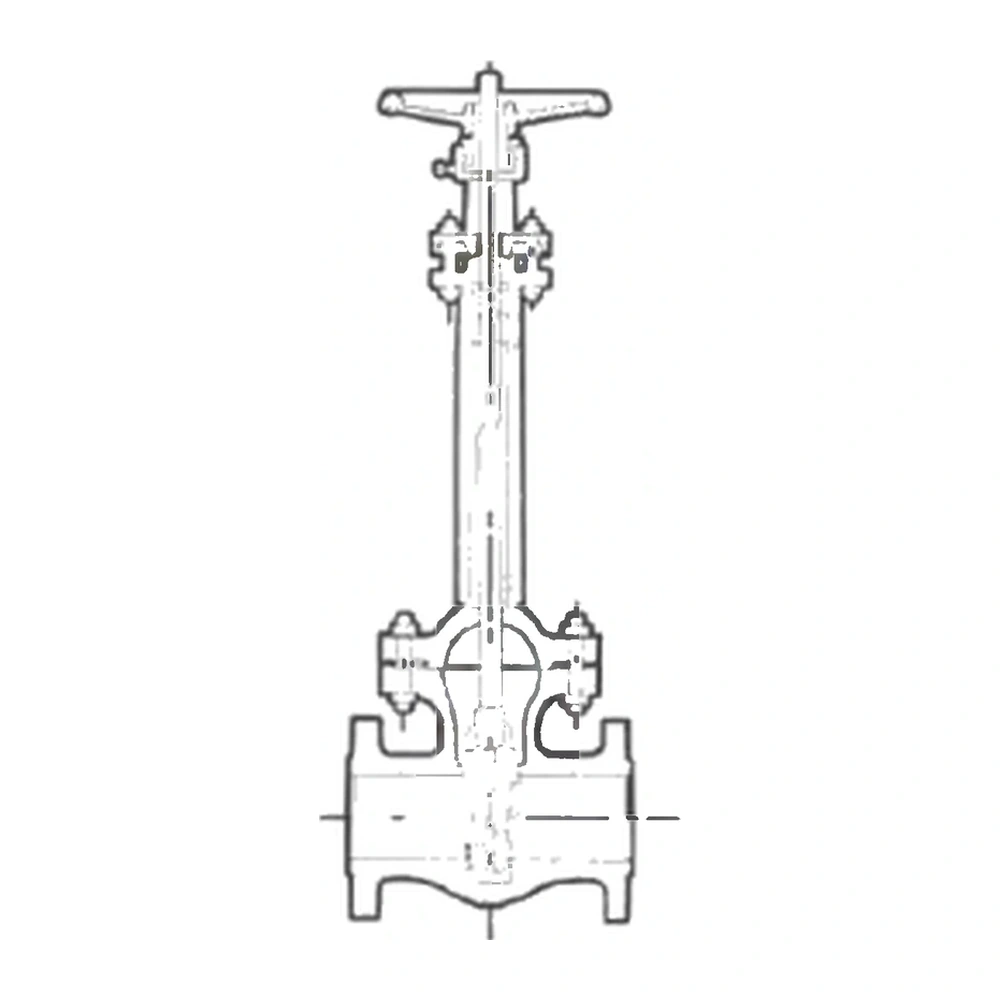

Extended-bonnet cryogenic gate valve

This cryogenic gate valve has an extended bonnet and stem. The increased distance between the process body and the operating assembly is the defining construction shown. A linearly moving closure member provides isolation of the main flow path. Specify the end connections, material suitable for the cold fluid, and the pressure-temperature envelope for the required configuration. Limits for a standard gate valve must not be assumed to apply to this special construction.
